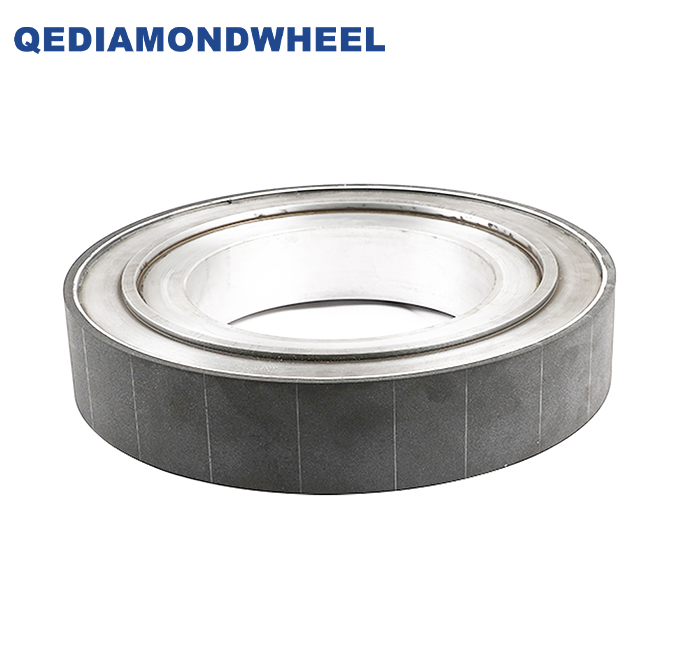

Vitrified CBN Grinding Wheel Is A High-Performance Grinding Tool That Combines Cubic Boron Nitride Abrasive With A Vitrified Bond.
High Precision Superabrasive Solutions for High-Efficiency Grinding of Hard Ferrous Metals
Vitrified CBN grinding wheels are engineered with advanced ceramic bonding technology, delivering exceptional rigidity, thermal stability and self-sharpening properties for high-precision grinding of hard ferrous metals. The vitrified bond matrix provides superior chemical inertness and thermal resistance, making these wheels ideal for high-speed, high-efficiency grinding applications.
The porous ceramic bond structure ensures excellent chip evacuation and cooling performance, while maintaining dimensional stability even at elevated temperatures. Compared to resin-bonded CBN wheels, vitrified CBN wheels offer higher grinding accuracy, longer service life and better surface finish consistency for critical precision applications.
Designed for heavy-duty continuous operation, vitrified CBN wheels provide 50-150 times longer service life than conventional abrasive wheels and outperform resin-bonded alternatives in high-precision, high-volume production environments.
Ceramic bond maintains structural integrity up to 1200°C, preventing wheel deformation
No reaction with ferrous metals at high temperatures, eliminating workpiece contamination
Controlled abrasive wear maintains consistent cutting performance over time
Micron-level precision (±0.5-2μm) for critical tolerance applications
Open bond structure prevents clogging during high-volume material removal
50-150x longer life than conventional abrasives, reducing downtime and costs

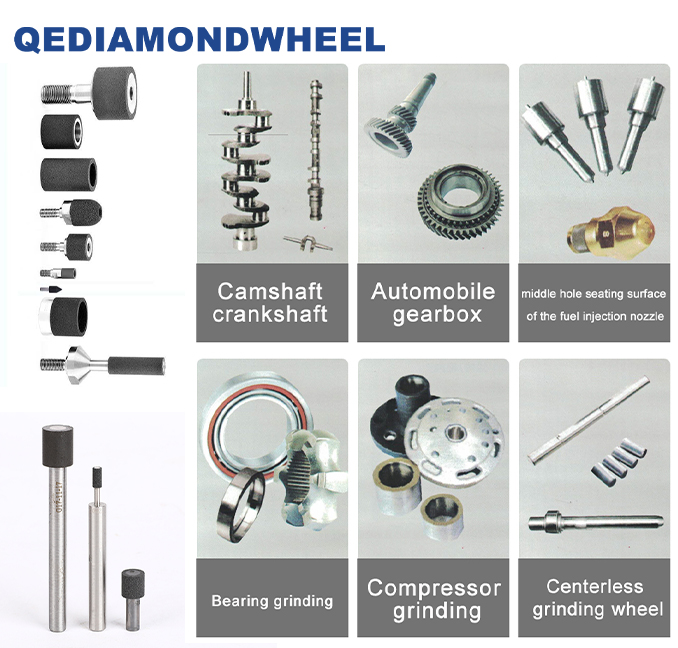

Our vitrified CBN wheels are specifically engineered for high-precision, high-efficiency grinding of hard ferrous metals in industrial production environments. With superior thermal stability and exceptional dimensional accuracy, combined with the rigid grinding action of ceramic bonding, they are ideal for the following four major application categories:

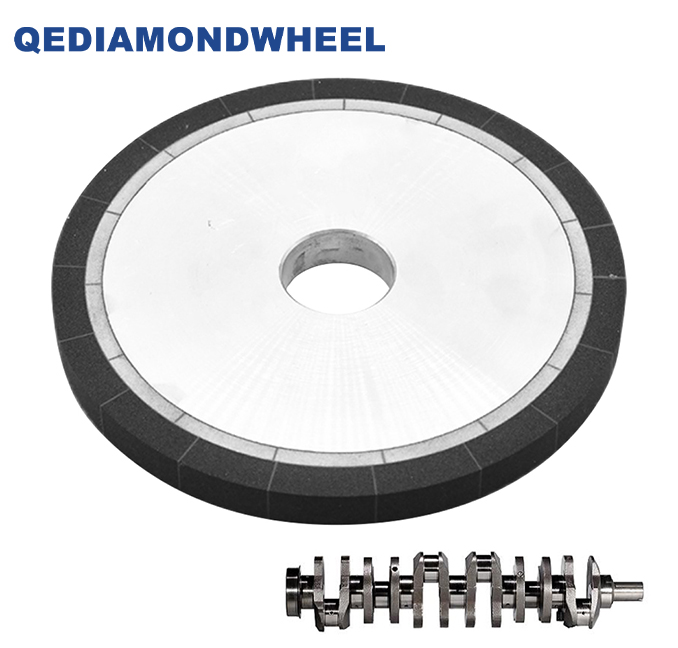

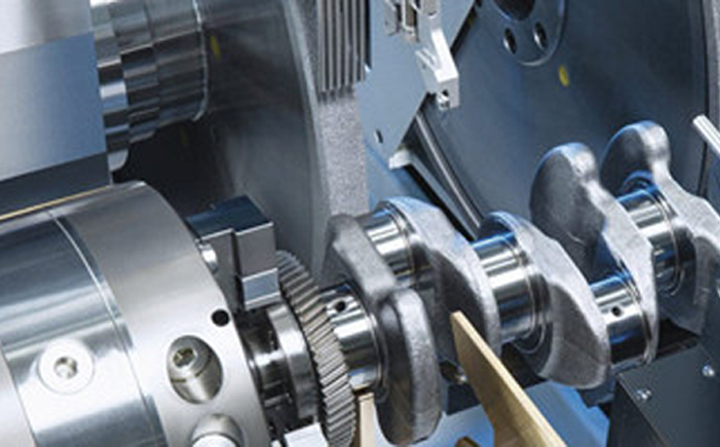

Vitrified CBN wheels for high-precision crankshaft and camshaft grinding applications
Our vitrified CBN wheels are optimized for high-performance grinding machines used in precision manufacturing:
| Parameter | Specifications |
|---|---|
| Model/Type | 1A1/6A2/Customized |
| Diameter (mm) | 100 - 600 (Custom up to 800) |
| Bore Size (mm) | 20 - 305 (Custom available) |
| Thickness (mm) | 5 - 150 (Custom available) |
| Grit Size | 40# - 2000# (Coarse to ultra-fine) |
| Concentration | 75% - 300% (Standard: 100%/150%/200%) |
| Max Speed (m/s) | 45 m/s (80 m/s reinforced) |
| Application Range | Roughing/Semi-Finish/Finish/Polishing |
| Material Focus | Hard Ferrous Metals & High-Temp Alloys |
| Bond Type | Advanced vitrified ceramic bond |
| Hardness Grade | Medium (I/J) to Extra Hard (Q/R) |
| Abrasive Type | CBN (Mono/Polycrystalline) - Boron Nitride |
Note: Vitrified CBN wheels can be customized for specific grinding machine requirements, workpiece materials and production volumes. Our engineering team will optimize bond porosity, CBN concentration and wheel geometry for your exact application.
Block A, 5th Research Institution
Zhengzhou, Henan
China 450000
Send us your grinding requirements for a free technical consultation on vitrified CBN wheel solutions.

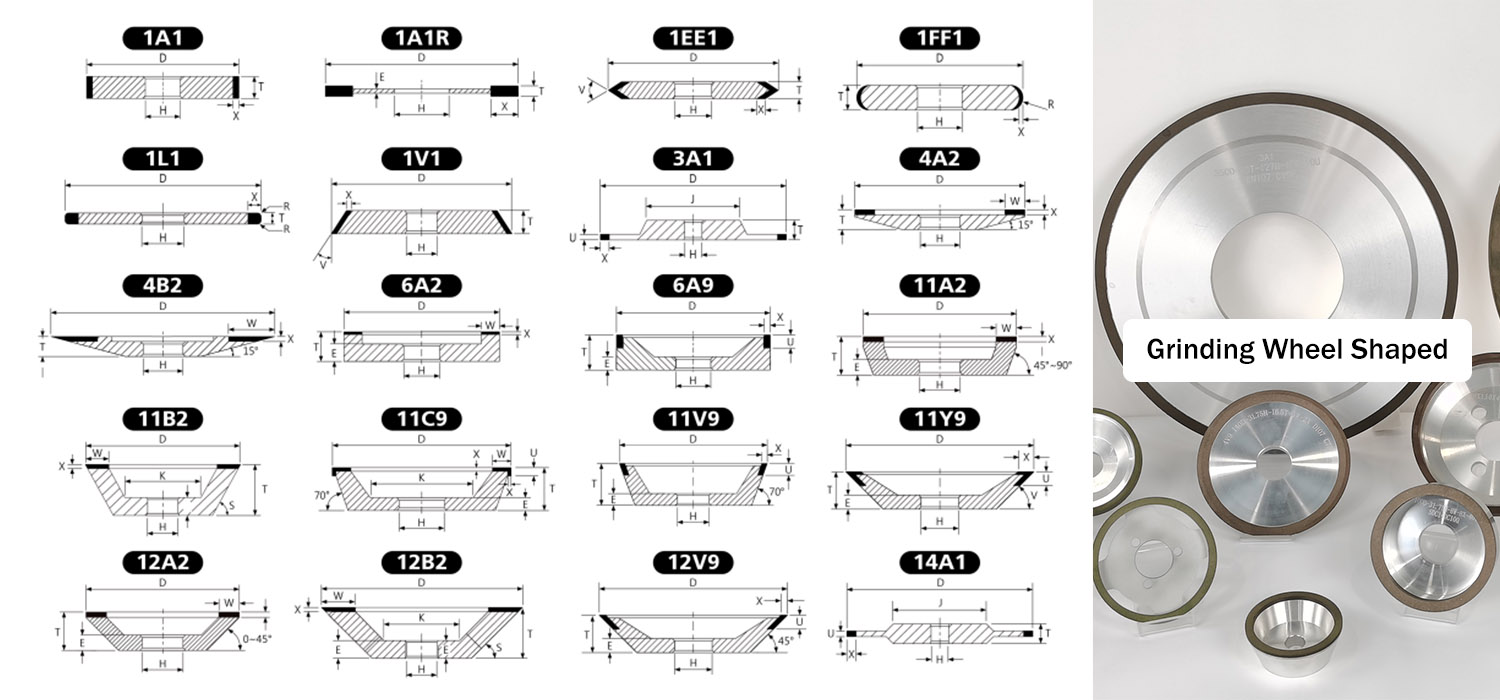

Comprehensive Vitrified CBN Grinding Wheel Types: This diagram illustrates the various shapes and configurations of vitrified CBN grinding wheels optimized for high-precision, high-efficiency grinding applications in automotive, aerospace and industrial manufacturing.
Choosing the right vitrified CBN wheel shape and specification depends on your machine capabilities, production volume, and workpiece requirements. Our ceramic bond specialists can help you optimize wheel porosity, CBN concentration and geometry to maximize productivity and quality.
Our vitrified CBN grinding experts are ready to help you optimize your high-efficiency grinding processes for hard ferrous metals, automotive components and aerospace applications.
