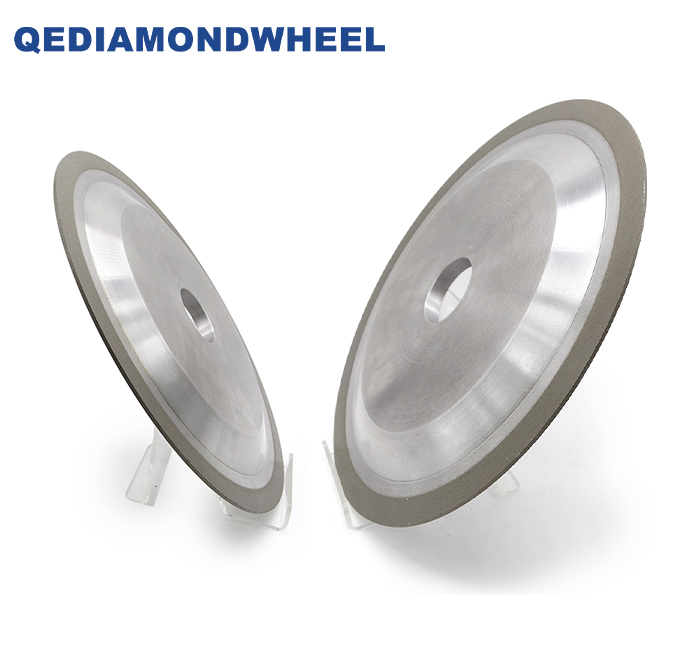

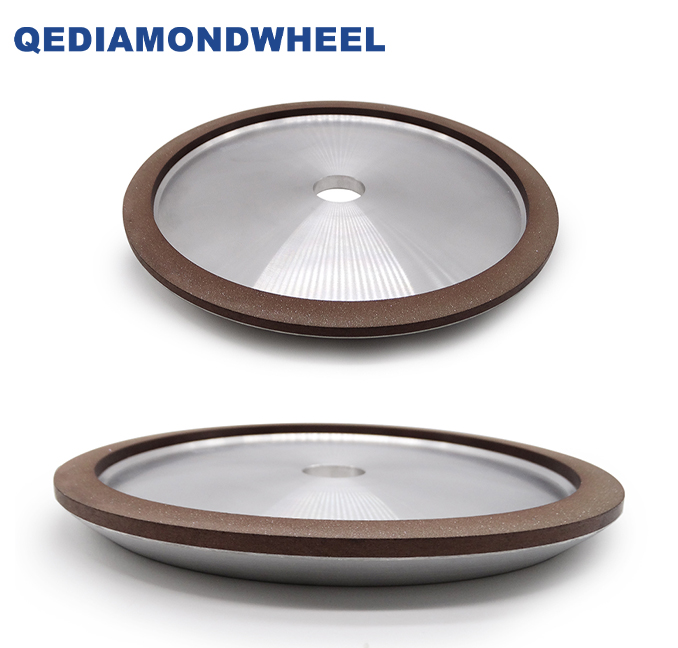

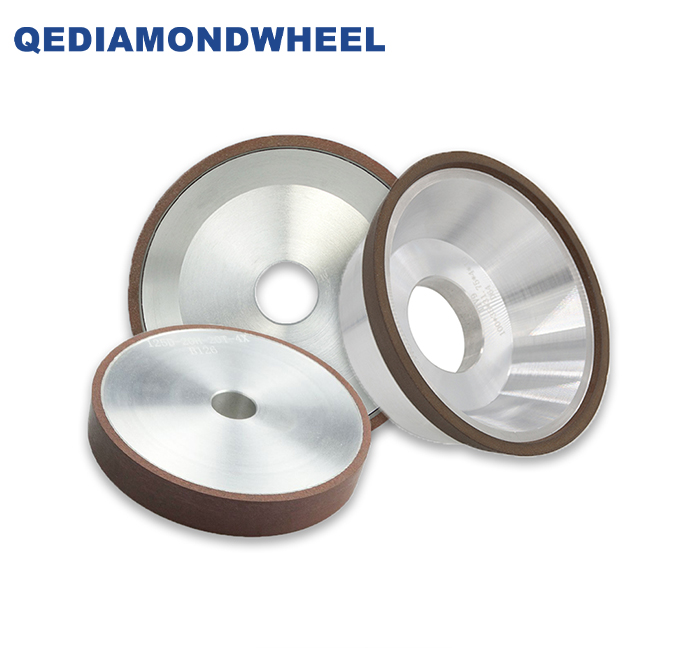

Customized Resin Bond Cbn Grinding Wheel For HSS Tools;
Professional Superabrasive Solutions for Semi-Finish, Finish and Polishing of Hard Ferrous Metals
Resin CBN grinding wheels are specifically engineered for the semi-finishing, finishing and polishing of high-hardness ferrous metals and tough alloys. Combining the unique properties of Cubic Boron Nitride (CBN) abrasives with advanced phenolic resin bonding technology, these wheels deliver exceptional performance in precision grinding applications.

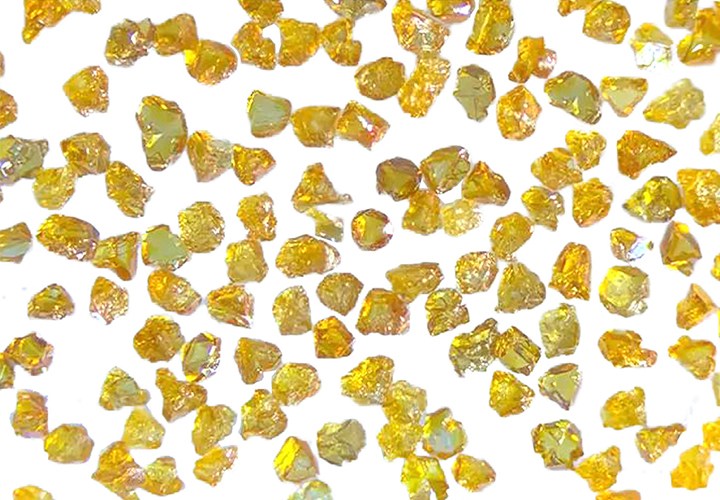

The lack of chemical affinity with iron group elements makes CBN abrasives ideal for ferrous metal grinding, while their exceptional thermal stability ensures consistent performance at elevated temperatures. The resin bond provides flexible grinding action, minimizing workpiece damage and ensuring excellent surface quality.
Compared to conventional abrasive wheels, resin CBN wheels offer 30-100 times longer service life and significantly higher grinding efficiency for hardened steels and tough alloys.
CBN abrasives do not react chemically with ferrous metals, preventing thermal damage
Maintains cutting performance at temperatures up to 1400°C
Resin bond elasticity minimizes workpiece damage and vibration
Achieves mirror-like surface quality up to Ra 0.2μm
Maintains tight tolerances (±1-5μm) for precision engineering
30-100x longer life reduces wheel changes and production costs
Our resin CBN wheels are specifically engineered for precision grinding of high-hardness ferrous metals and tough alloys. With no chemical affinity with iron group elements and exceptional thermal stability, combined with the flexible grinding action of resin bond, they are ideal for the following four major application categories:

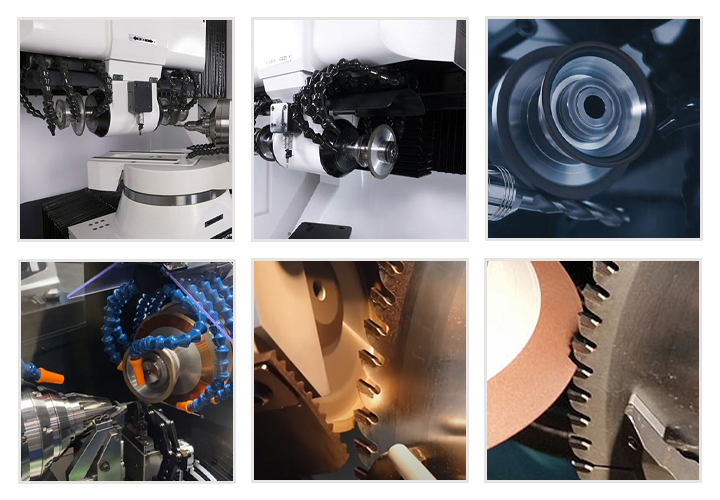

Resin CBN wheels for precision grinding of hard ferrous metals
Our resin CBN grinding wheels are compatible with precision grinding machines suitable for ferrous metal finishing:
| Parameter | Specifications |
|---|---|
| Model/Type | 1A1/6A2/Customized |
| Diameter (mm) | 100 - 500 (Custom up to 600) |
| Bore Size (mm) | 20 - 305 (Custom available) |
| Thickness (mm) | 5 - 100 (Custom available) |
| Grit Size | 80# - 1200# (Fine to coarse) |
| Concentration | 75% - 200% (Standard: 100%/150%) |
| Max Speed (m/s) | 35 m/s (125 m/s reinforced) |
| Application Range | Semi-Finish/Finish/Polishing |
| Material Focus | Hard Ferrous Metals & Tough Alloys |
| Bond Type | High-temp phenolic resin |
| Hardness Grade | Soft (G/H) to Hard (K/L) |
| Abrasive Type | CBN (Mono/Polycrystalline) |
Note: All specifications can be customized based on your specific application requirements, machine model, and workpiece material characteristics. Contact our technical team for specialized solutions.
Block A, 5th Research Institution
Zhengzhou, Henan
China 450000
Send us your grinding requirements for a free technical consultation.

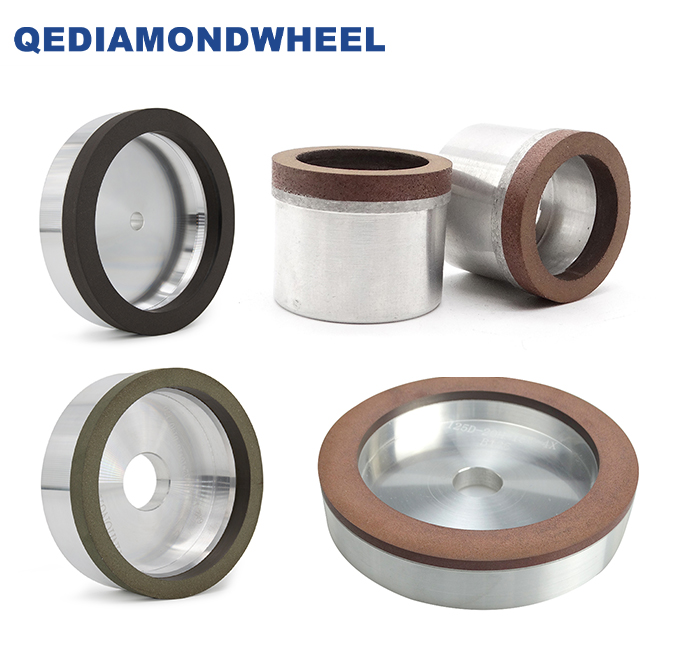

Comprehensive CBN Grinding Wheel Types: This diagram illustrates the various shapes and configurations of resin CBN grinding wheels available for different grinding applications and machine specifications.
Choosing the right wheel shape depends on your machine type, workpiece geometry, and grinding requirements. Our technical team can help you select the optimal wheel shape for your specific application to ensure maximum efficiency and precision.
Our CBN grinding experts are ready to help you optimize your semi-finishing, finishing and polishing processes for high-hardness ferrous metals and tough alloys.
