Some Saw Blades Are Often Used In Wood Processing, Such As Carbide Or High-Speed Steel Circular Saw Blades, Band Saw Blades, Chain Saw Blades, Etc. After A Long Time Of Use, The Saw Blades Will Become Less Sharp And The Wood Cutting Will Not Be So Smooth. At This Time, We Need To Grind The Saw Blades To Make Them Sharp Again, So The Grinding Wheel Plays An Extremely Important Role In The Grinding Process Of The Saw Blades;
First Of All, We Need To Know That There Are Three Types Of Saw Blades Often Encountered In Wood Processing:
*Woodworking Circular Saw Blades;
*Woodworking Band Saw Blades;
*Woodworking Chain Saw Blades;
Because Of Their Different Shapes, The Shapes And Materials Of The Grinding Wheels Used For Grinding Are Also Different;
1.Grinding Wheel For Woodworking Circular Saw Blades
Woodworking Circular Saw Blades Can Be Roughly Divided Into Three Categories According To The Material, Namely Carbide Circular Saw Blades, High-Speed Steel Circular Saw Blades And PCD Circular Saw Blades,Different Grinding Wheels Are Used According To Their Different Materials:
*Resin Bond Diamond Grinding Wheel For Tungsten Carbide (TCT) Circular Saw Blade;
*Resin Bond CBN Grinding Wheel For High Speed Steel (HSS) Circular Saw Blade;
*Vitrified Bond Diamond Grinding Wheel For PCD Circular Saw Blade;

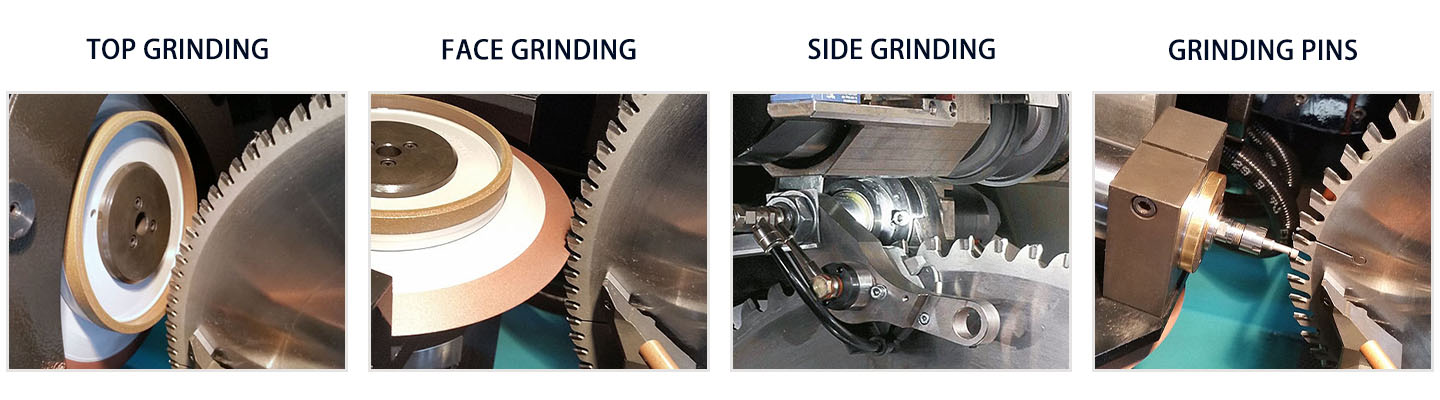

Because Of The Shape Of The Saw Blade, Saw Blades Can Generally Be Divided Into Four Grinding Methods,Choose The Right Type Of Grinding Wheel According To Different Positions:
*Grinding Wheel For Circular Saw Blade Top Grinding:4A2, 6A9, 12A9, 14AA1, 14A1, 14M1, 14B1, 3M1, 4B1, 11V9, 12V2, 12V9,etc;
*Grinding Wheel For Circular Saw Blade Face Grinding:4A2, 4V2, 12V2, 12V9, 12A2, 4B2,etc;
*Grinding Wheel For Circular Saw Blade Face Grinding:4A9, 3A1, 1A1, 11A2,etc;
*Grinding Pins For Circular Saw Blade Grinding:1A1W, 1A8W;

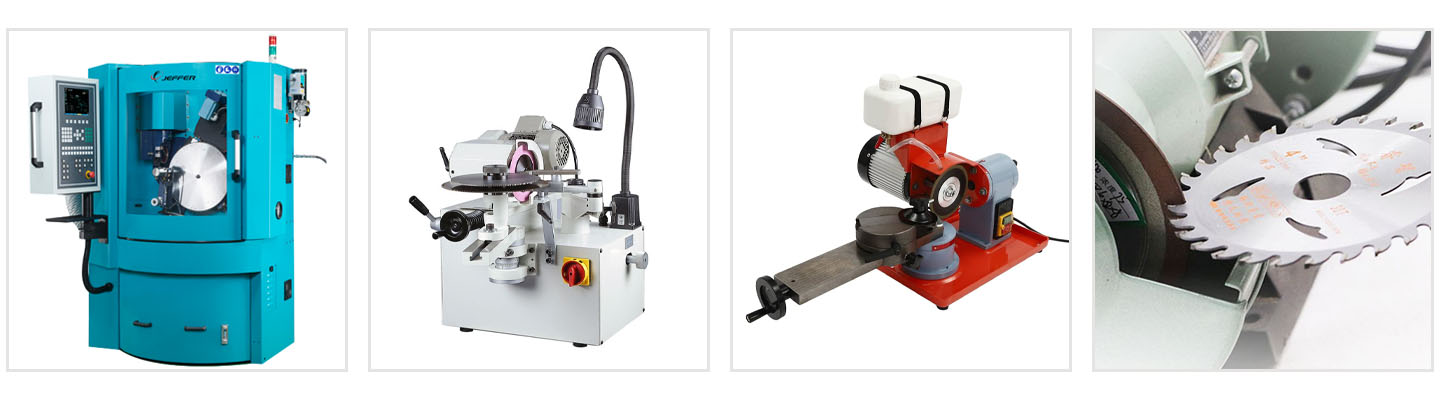

Circular Saw Blade Grinding Machines Are Generally Divided Into CNC Saw Blade Grinding Machines, Automatic Saw Blade Grinding Machines, Manual Saw Blade Grinding Machines, And Angle Grinders;
When Using CNC Machines To Grind Circular Saw Blades, Metal-Based Grinding Wheels Are Generally Used, Such As Aluminum-Based And Steel-Based Diamond Grinding Wheels. When Using Manual Machines Or Angle Grinders, Bakelite-Based Diamond Grinding Wheels Are Generally Used. However, This Is Not Entirely Absolute. The Quality Of The Grinding Wheel Is Also Related To The Selected Diamond Concentration, Diamond Quality, And Binder Quality.
2.Grinding Wheel For Woodworking Band Saw Blades
When Using A Grinding Wheel To Grind A Band Saw Blade, Due To The Special Shape Of Its Teeth, Electroplated Grinding Wheels Are Generally Used For Grinding. Generally, They Are Divided Into Carbide Band Saw Blades And High-Speed Steel Band Saw Blades According To Different Materials:
*Electroplated Bond Diamond Grinding Wheel For Tungsten (TCT) Band Saw Blade;
*Electroplated Bond CBN Grinding Wheel For High Speed Steel (HSS) Band Saw Blade;

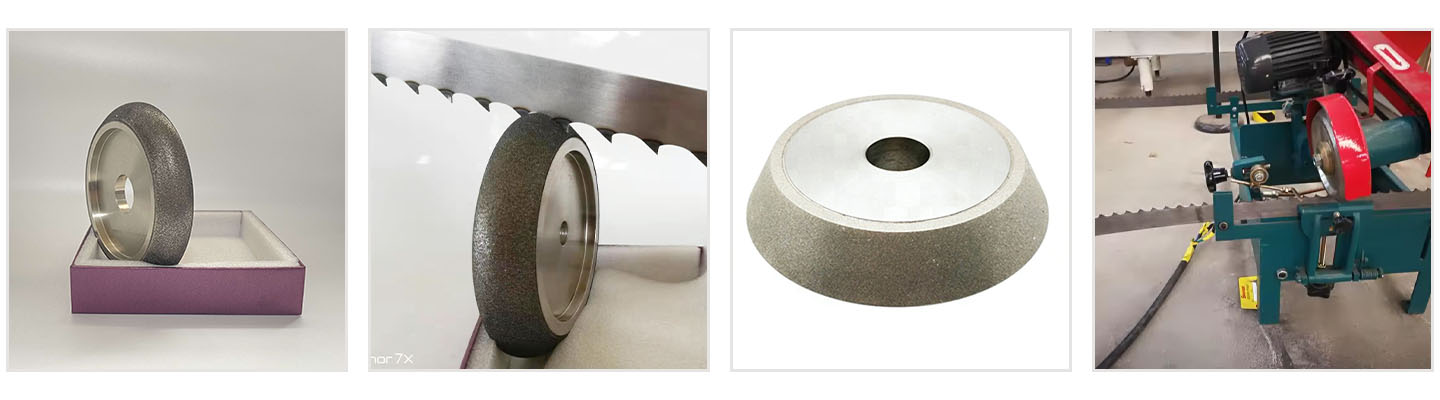

According To The Tooth Shape Of The Band Saw Blade, The Factory Has Developed A Grinding Wheel Specifically For Band Saw Blade Grinding. The Shape Is Shown In The Figure. Band Saw Blades Are Mostly Made Of High-Speed Steel, So The Best-Selling One At Present Is The CBN Grinding Wheel For Band Saw Grinding.
Common Angles For Band Saw Blades Are As Follows:10-30/9-29/13-29/4-32/7-34/etc.
10/30: Commonly used universal grinding wheel profiles, softwood and hardwood band saws can be used;
9/29: Band saw or hardwood band saw for winter wood cutting;
13/29: Band saw or softwood band saw for summer wood cutting;
4/32: used to cut band saws for very hardwood;
7/34: For hardwood cutting band saw;
(Other Band Saw Blade Angle Grinding Wheels Can Be Customized)
In Addition, Electroplated Bevel Grinding Wheels Are Also Used For Grinding Band Saw Blades Of Some Sizes;
2.Grinding Wheel For Woodworking Chain Saw Blades

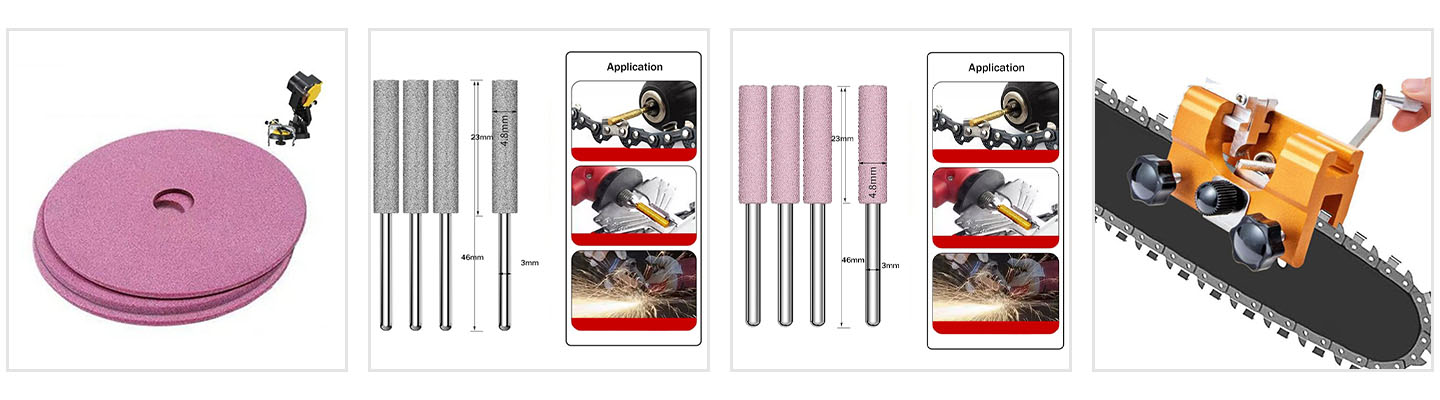

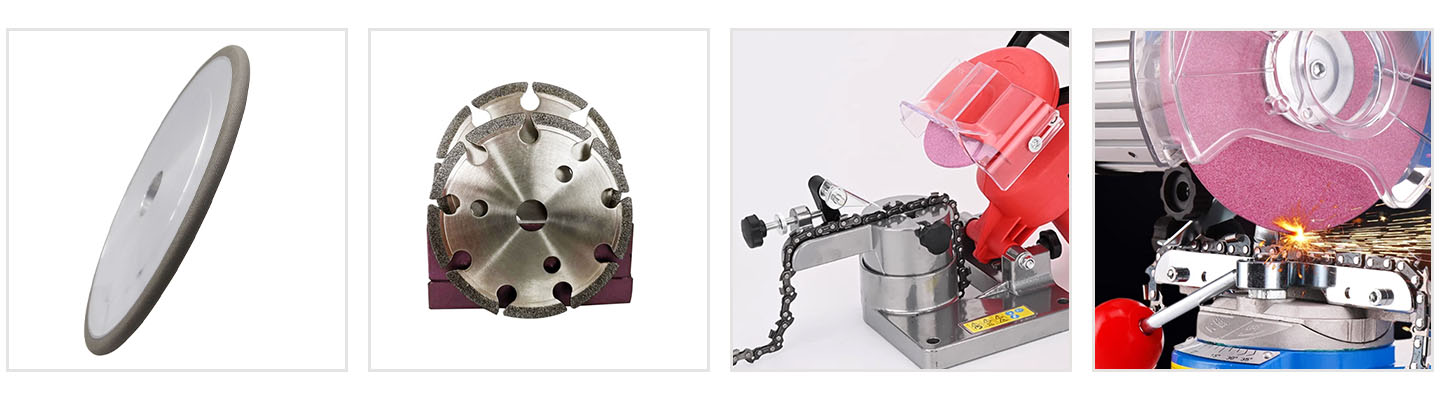

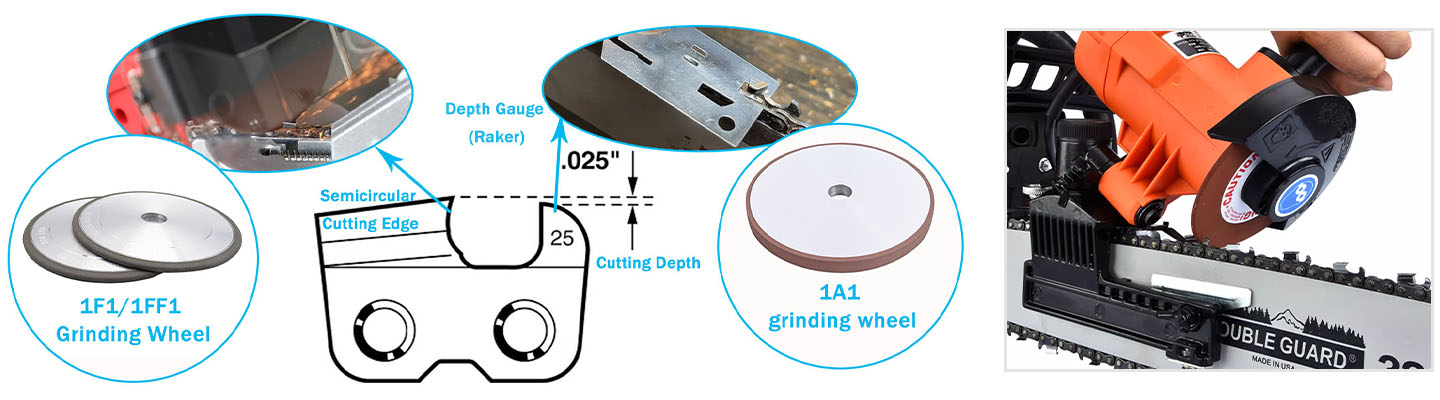

Chain Saw Blades Are Mostly Used For Cutting Wood On Oil Saws Or Lithium Electric Oil Saws. When Grinding The Chain Saw Blades, The Saw Teeth Of The Chain Saw Blades And The Connection Between The Saw Teeth Of The Chain Saw Blades Are Generally Ground, So That The Chain Saw Blades Can Cut Wood Better;Commonly Used Chain Saw Grinding Wheels Are As Follows:
*1F1 Resin Bond Diamond Grinding Wheel For Chain Saw Grinding
*1F1 Electroplated Bond Diamond Grinding Wheel For Chain Saw Grinding
