Diamond Or Cbn Grinding Wheels Can Be Used To Grind, Cut, And Perform Other Operations On End Mills And Drill Bits Of Different Materials; Grinding Can Make End Mills Or Drill Bits Sharper And More Efficient. Some Professional Technicians Can Use Grinding Wheels To Process Materials And Directly Generate The End Mills They Want;

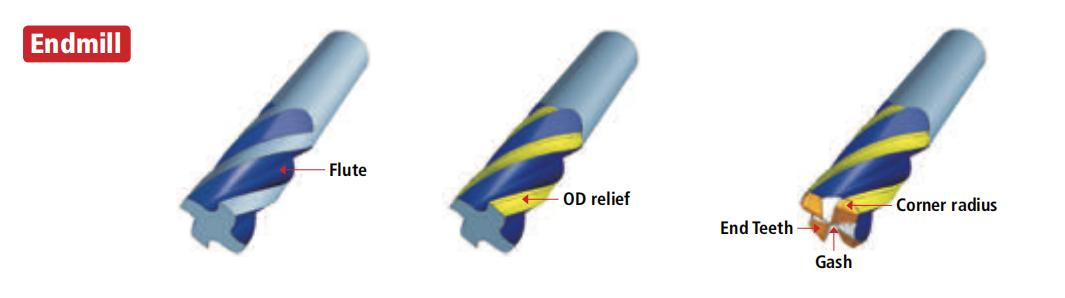

Firstly, End Mill Grinding;
*Resin Diamond CBN Wheels for Endmills Flute Grinding:1A1,1V1,3V1,3V1,14A1,14F1,14V1,4A9 ;
*Resin Diamond CBN Wheels for EndMills OD Relief :6A9,11V9,12A2,12V9,12V5,6V5;
*Resin Diamond CBN Wheels for EndMills Gash Grinding:1A1,1V1,3V1,12V9,14V1;

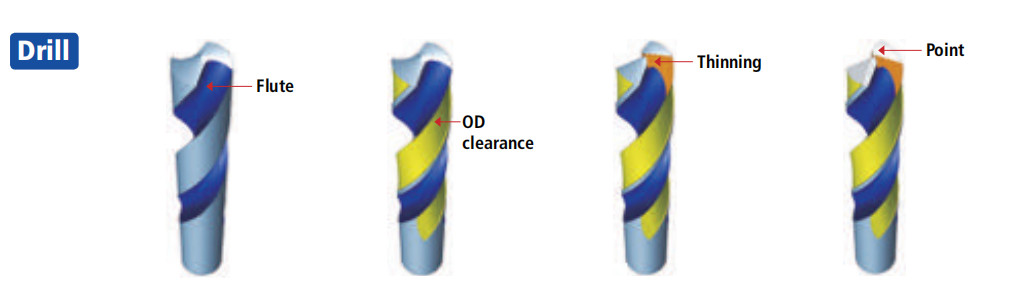

Secondly, Drill Bit Grinding;
*Resin Diamond CBN Wheels for Drill Flute Grinding:1A1,1V1,3V1, etc.;
*Resin Diamond CBN Wheels for Drill OD Relief:3V1 etc.;
*Resin Diamond CBN Wheels for Drill Thinning Grinding:1V1,3V1,etc.;
*Resin Diamond CBN Wheels for Drill Point Grinding:6A2,11A2 etc.;
Common Grinding Wheel Models For End Mill Drill Bit Grinding;

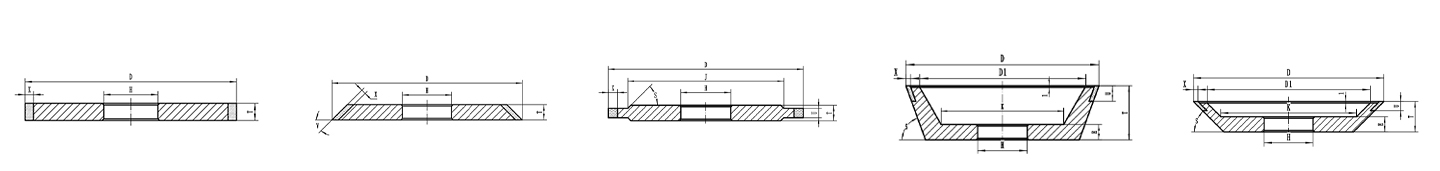

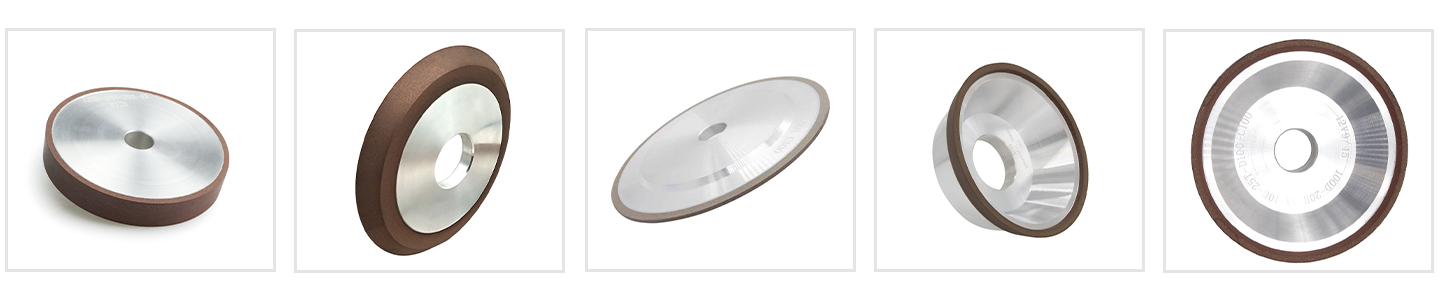

1A1 Shaped / 1V1 Shaped / 14F1 Shaped / 11V9 Shaped / 12v9 Shaped / Other Shaped Customized
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V |
| 1A1 Shaped | 75 | 10 | 5 | 20 | |
| 100 | 6, 10, 12 | 5, 10 | 20 | ||
| 125 | 10, 12, 16 | 10 | 20 | ||
| 150 | 12 | 10 | 20 | ||
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V |
| 1V1 Shaped | 75 | 10 | 5 | 20 | 45 |
| 100 | 10, 15 | 5 | 20 | 45 | |
| 125 | 6, 10, 15 | 5 | 20 | 45 | |
| 150 | 12 | 5 | 20 | 45 | |
| Type | D (mm) | U (mm) | X (mm) | H (mm) | |
| 14F1 Shaped | 100 | 4 | 6 | 20 | |
| 125 | 3 | 5 | 20 | ||
| 150 | 1,5 | 5, 7 | 20 | ||
| Type | D(mm) | T(mm) | X(mm) | H(mm) | |
| 11V9 Shaped | 75 | 30 | 10 | 20,31.75 | |
| 100 | 35 | 10 | 20,31.75 | ||
| 125 | 35 | 10 | 20,31.75 | ||
| Type | D (mm) | T(mm) | X (mm) | H(mm) | |
| 12V9 Shaped | 75 | 20 | 10 | 20, 31.75 | |
| 100 | 25 | 10 | 20, 31.75 | ||
| 125 | 25 | 10 | 20, 31.75 | ||
| 150 | 25 | 10 | 20, 31.75 | ||
| We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com | |||||

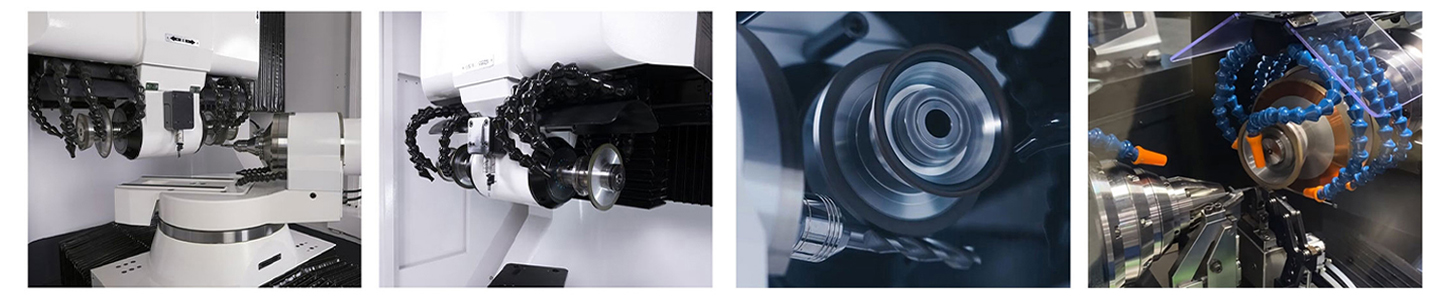

When Grinding Drill Bits And End Mills, A Five Axis CNC Machine Is Generally Selected For Processing, While Some May Also Use Manual Grinding Machines For Processing, Depending On The Processing Environment, Material, And Requirements;
Grinding, We Are Professional. If You Need A Grinding Wheel, You Can Contact Us For Purchase Or Customization;
