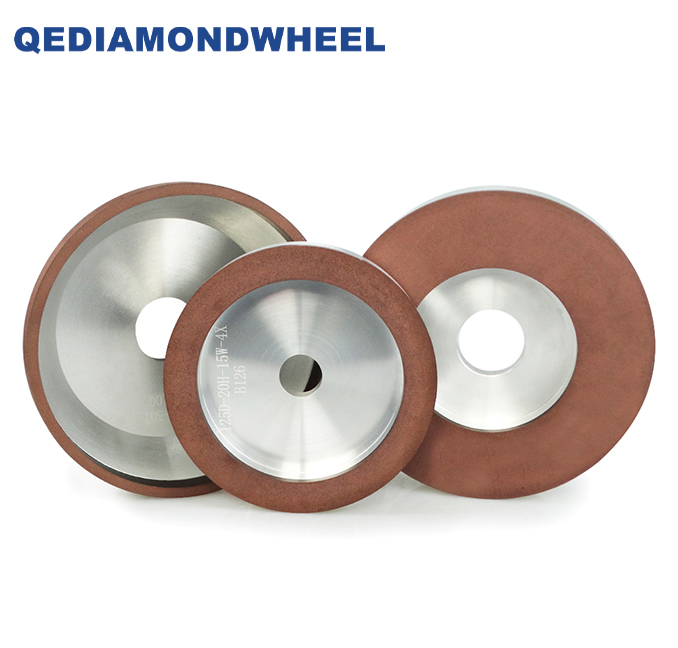

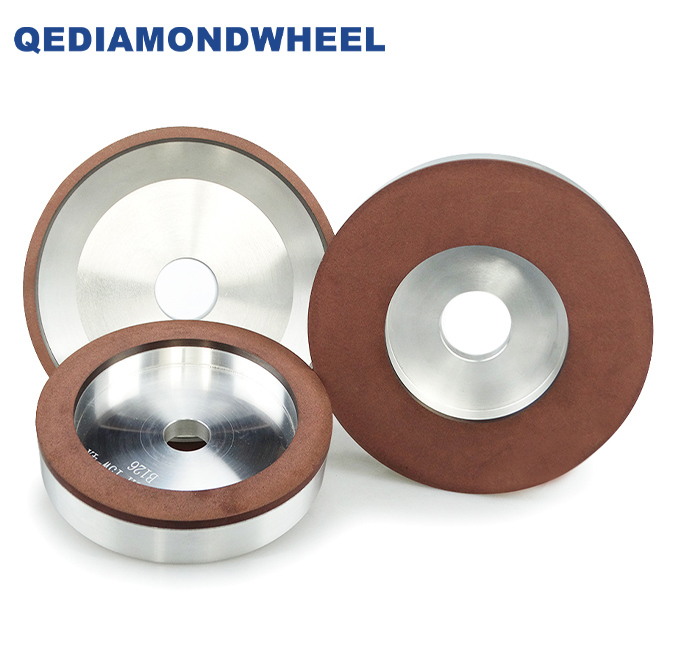

Customized Resin Bond Diamond Grinding Wheel For Tungsten Carbide;
Professional Diamond Abrasive Solutions for Semi-Finish, Finish and Polishing of High-Hardness & Brittle Materials
Resin diamond grinding wheels are specifically designed for the semi-finishing, finishing and polishing of high-hardness and brittle materials. Combining the extreme hardness of synthetic diamond abrasives with the unique properties of phenolic resin bond, these wheels deliver exceptional performance in precision grinding applications.
The flexible grinding action of resin bond prevents workpiece damage while ensuring consistent grinding accuracy. The resin bond's ability to wear in a controlled manner ensures constant exposure of fresh diamond edges, providing strong self-sharpening characteristics and minimal subsurface damage.
Compared to other bond types, resin diamond wheels offer superior surface finishes (Ra ≤ 0.1μm), excellent dimensional accuracy, and significantly reduced thermal damage to the workpiece.
Resin bond elasticity prevents brittle material breakage and reduces workpiece damage
Minimal thermal and mechanical damage to workpiece material
Continuous exposure of fresh diamond edges for consistent cutting performance
Achieves mirror-like surface quality up to Ra 0.1μm
Maintains tight tolerances (±1-5μm) for precision engineering
Covers six major industrial fields with diverse material processing needs
Our resin diamond wheels are specifically engineered for precision grinding of high-hardness and brittle materials. The resin bond's unique properties enable flexible grinding, low damage, and strong self-sharpening, making them ideal for the following six major application categories:
Resin diamond wheels for precision grinding applications
Our resin diamond grinding wheels are compatible with precision grinding machines suitable for semi-finishing and finishing operations:
| Parameter | Specifications |
|---|---|
| Model/Type | 1A1/6A2/Customized |
| Diameter (mm) | 50 - 500 (Custom up to 600) |
| Bore Size (mm) | 10 - 305 (Custom available) |
| Thickness (mm) | 3 - 100 (Custom available) |
| Grit Size | 80# - 3000# (Coarse to ultra-fine) |
| Diamond Concentration | 25% - 200% (Standard: 75%/100%) |
| Max Speed (m/s) | 35 m/s (Special up to 60 m/s) |
| Application Range | Semi-Finish/Finish/Polishing |
| Material Focus | High-Hardness & Brittle Materials |
| Bond Type | Phenolic resin bond |
| Hardness Grade | Soft (G/H) to Hard (K/L) |
| Abrasive Type | Synthetic Diamond (Various grades) |
Note: All specifications can be customized based on your specific application requirements, machine model, and workpiece material characteristics. Contact our technical team for specialized solutions.
Block A, 5th Research Institution
Zhengzhou, Henan
China 450000
Send us your grinding requirements for a free technical consultation.

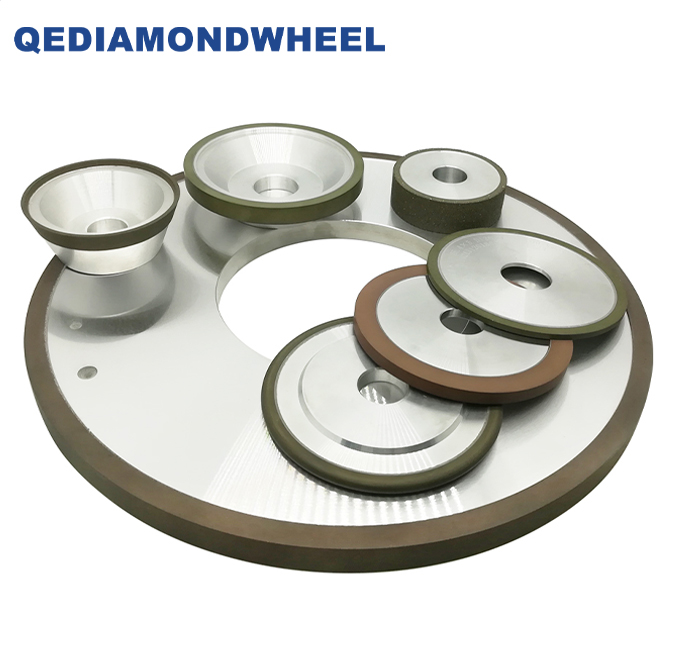

Comprehensive Diamond Grinding Wheel Types: This diagram illustrates the various shapes and configurations of resin diamond grinding wheels available for different grinding applications and machine specifications.
Choosing the right wheel shape depends on your machine type, workpiece geometry, and grinding requirements. Our technical team can help you select the optimal wheel shape for your specific application to ensure maximum efficiency and precision.
Our resin diamond grinding experts are ready to help you optimize your semi-finishing, finishing and polishing processes for high-hardness and brittle materials.
