Face Grinding Wheels
Resin bond diamond & CBN wheels for precision tooth face grinding to restore cutting edge geometry.
Standard Wheel Shapes:

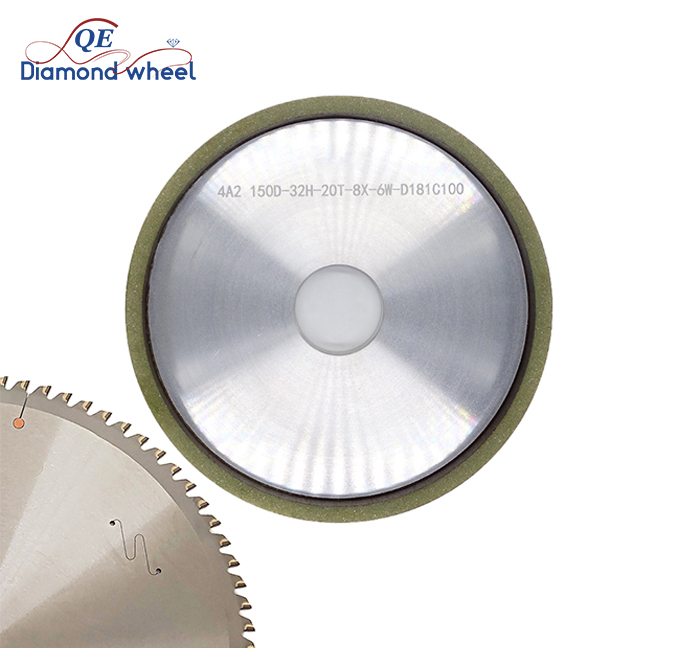

4A2, 4V2, 12V2, 12V9, 12A2, 4B2
grinding wheel for circular saw blade grinding;

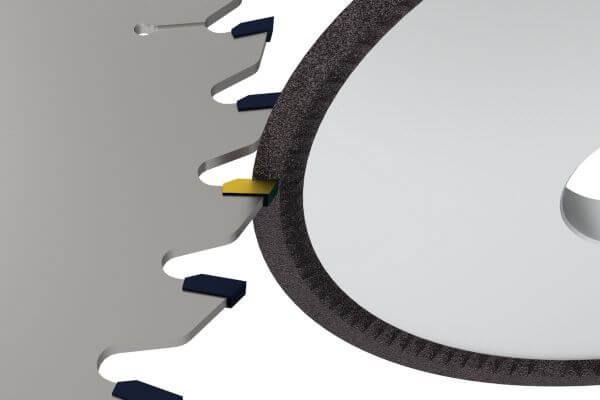

Resin bond diamond & CBN wheels for precision tooth face grinding to restore cutting edge geometry.

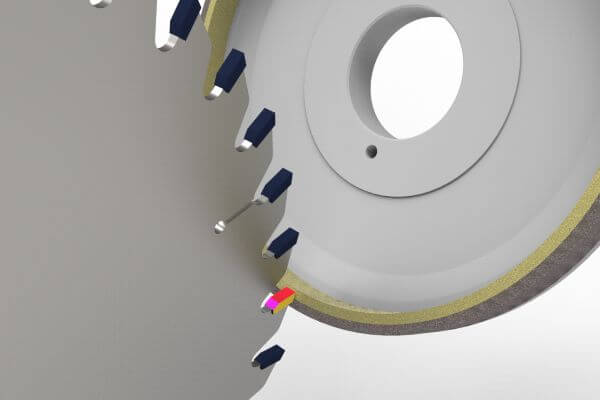

Resin bond diamond & CBN wheels for restoring cutting edge height and profile on all tooth designs.

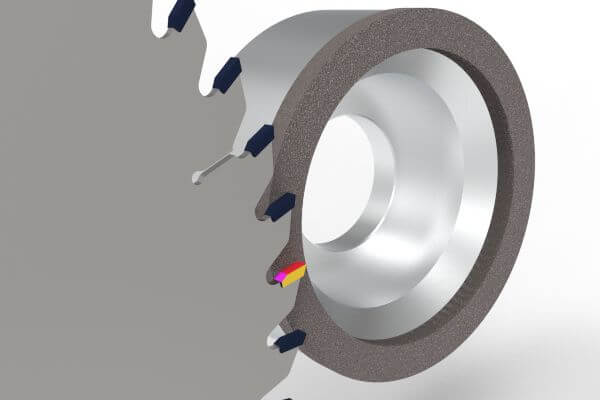

Resin bond diamond & CBN wheels for precision side edge grinding to maintain proper clearance angles and kerf width.

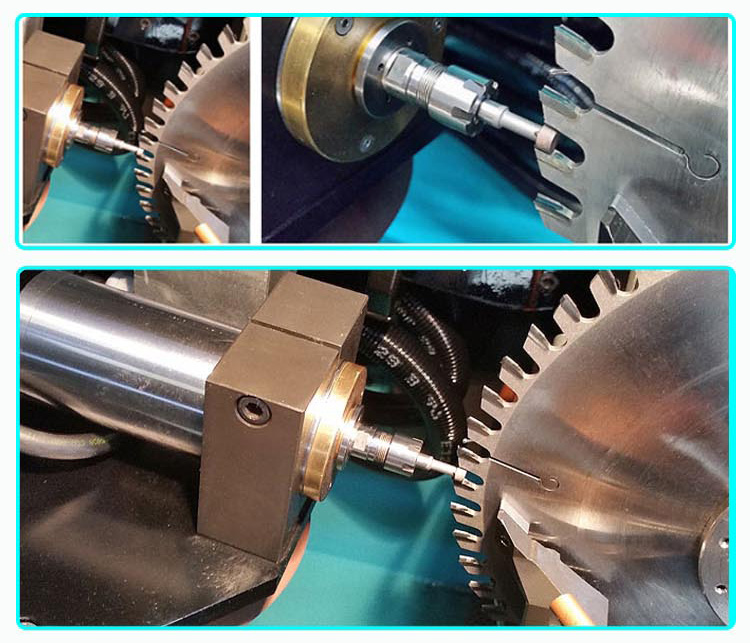

Resin bond diamond & CBN grinding pins designed for efficient chip removal in hollow-tooth saw blades.
Selecting the correct abrasive and bond combination for optimal performance and wheel life.
| Saw Blade Material | Characteristics & Applications | Recommended Wheel Specification | Key Considerations |
|---|---|---|---|
| PCD (Polycrystalline Diamond) |
Ultra-hard (8000+ HV), extreme wear resistance. Used for cutting abrasive composites, laminates, MDF, and non-ferrous metals. | Ceramic Bond Diamond Wheel • Exceptional thermal stability • Maintains form under high pressure • High grit retention |
• Low speed, light feed rates essential • Critical heat management • Coolant recommended |
| Carbide-Tipped (Tungsten Carbide) |
High hardness (1500-2000 HV), relatively brittle. Most common for woodworking and non-ferrous metal cutting blades. | Resin Bond Diamond Wheel • Grit: D46-D181 • Concentration: 75-125% • Excellent for cool cutting |
• Control grinding force to prevent chipping • Avoid overheating to prevent cracks |
| High-Speed Steel (HSS) | Good toughness, prone to softening at high temperatures. Used in general-purpose and ferrous metal cutting blades. | Resin Bond CBN Wheel • Chemically inert to iron • Withstands high temperatures • Superior edge retention on steels |
• Prevent annealing with ample coolant • CBN offers 50-100x life vs conventional |
Our engineering team specializes in optimizing grinding wheel specifications for your specific applications.
For detailed technical inquiries, quotations, and application analysis.
+86 155 3717 9206
Direct technical support available during business hours (GMT+8).
Start WhatsApp ChatProvide your blade material, machine model, and production goals for a tailored wheel recommendation.
Business Hours: Monday - Saturday, 8:00 AM - 6:00 PM (China Standard Time, GMT+8)
