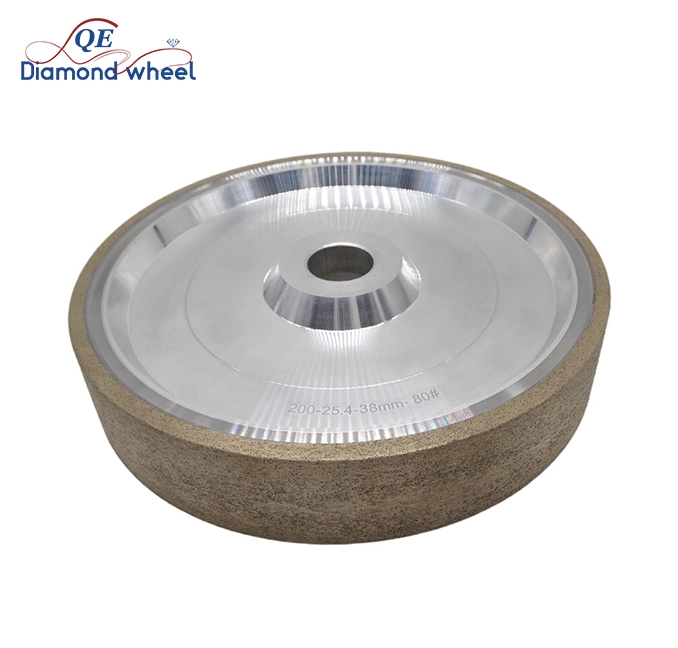

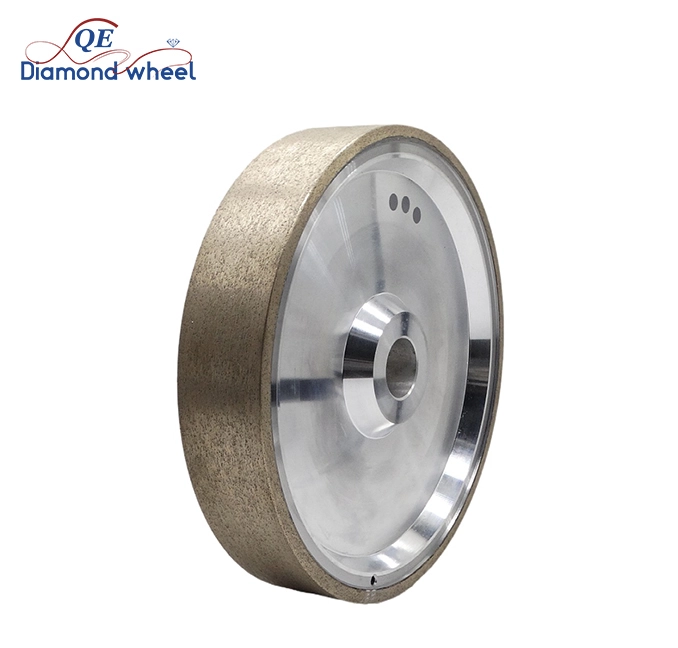

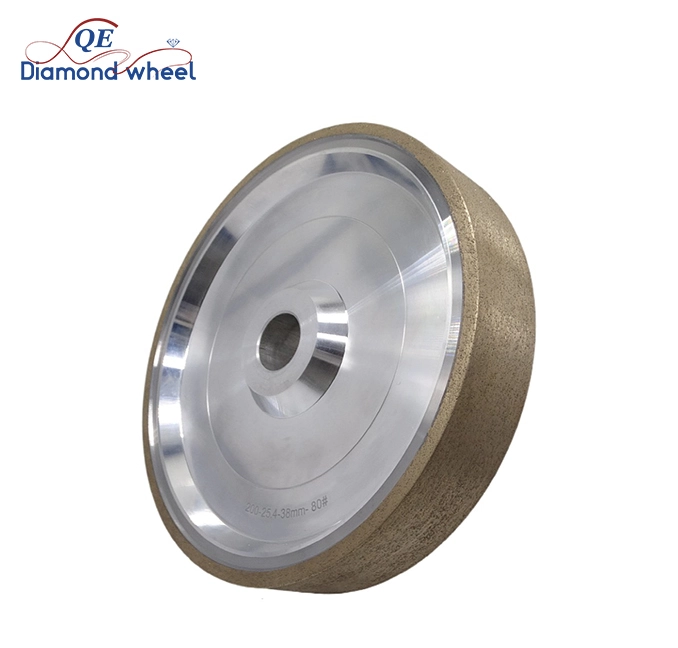

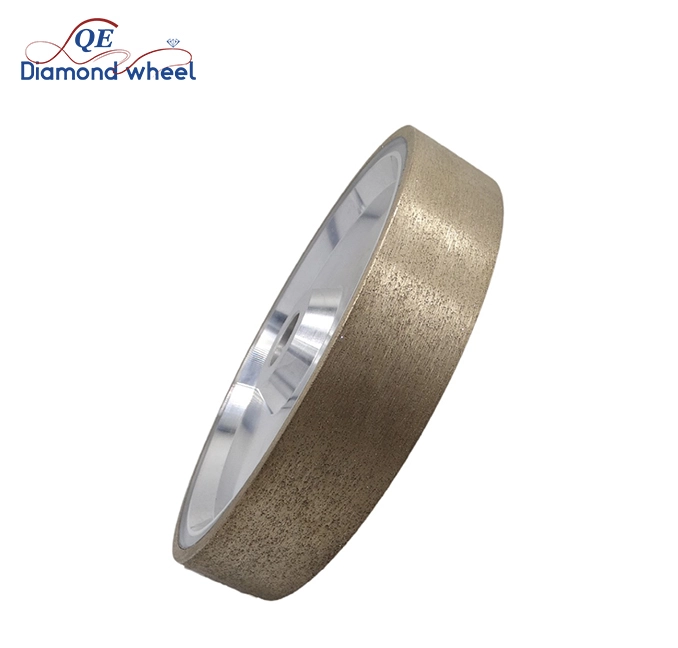

Sintered Diamond Cabbing Wheel
Sintered Diamond Cabbing Wheel
Sintered Diamond Cabbing Wheel

Sintered Diamond Cabbing Wheel

High Quality Lapidary Sintered Metal Bond Diamond Grinding Wheel;

product name:sintered diamond polishing wheel;
material:synthetic diamond powder + metal Body;
size:100mm(4inch)/150mm(6inch)/200mm(8inch);
Thickness:25mm/38mm/50mm;
usage:Special-shaped processing of hard and brittle materials such as gemstones, crystals, glass, artificial crystals, and ceramics;
application:gemstone polishing machine,cabbing machine,grinding machine;
  • Sintered Diamond Cabbing Wheel
  • Sintered Diamond Cabbing Wheel
  • Sintered Diamond Cabbing Wheel
  • Sintered Diamond Cabbing Wheel
WhatsApp Send Email
Introduction Features Size Model Package Message Products

Product Introduction

Sintered Metal Bond Diamond Wheels Are The Hardest, Longest Lasting Grinding Wheels, Outlasting All Other Gemstone Grinding Wheels; Metal Bond And Sintered Diamond Wheels Are Designed For Precision, Durability And Aggressive Material Removal In Professional Lapidary And Industrial Environments. Designed Specifically For Vertical Edge Grinders, These Wheels Feature A Deep Diamond Matrix And Advanced Bonding Technology To Deliver Consistent Performance On Hard Materials Such As Gemstones, Glass And Ceramics.

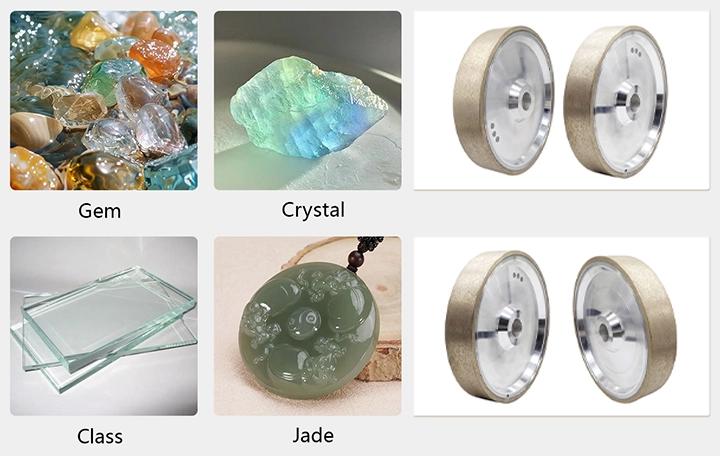

Metal Bond Diamond Cabbing Wheel Appliaction:

Gemstone Forming: Quickly Grind Agate, Quartz, And Sapphire Into Cabochons Or Facets.
Glass Beveling: Smooth Edges Of Colored Or Fused Glass With Minimal Chipping.
Industrial Grinding: Remove Material From Ceramics, Composites, Or Hardened Metals.

Product Features

Why Choose Sintered/Metal Bonded Cabbing Wheels?

1.Longer Life: Due To The Deeper Diamond Layer, It Lasts Longer Than Electroplated Or Resin-Bonded Wheels.

2.Grinding Wheels Can Be Constantly Dressed: Dress The Wheel To Expose New Diamonds For New Cutting Power.

3.Wear More Evenly With Use: Use The "Side-To-Side" Grinding Pattern To Maintain Even Wear And Avoid Frequent Dressing.

Product size

Product Name Diameter Hole Thickness Abrasive Thickness Grit
Sintered Metal Bond
Diamond Grinding Wheel		 100mm (4inch) 12.7mm/25.4mm 38mm 5mm 46 Mesh
60 Mesh
80 Mesh
100 Mesh
120 Mesh
150 Mesh
180 Mesh
220 Mesh
400 Mesh
600 Mesh
800 Mesh
1000 Mesh
1200 Mesh
150mm(6inch) 12.7mm/25.4mm 25mm 5mm
150mm(6inch) 12.7mm/25.4mm 38mm 10mm
150mm(6inch) 12.7mm/25.4mm 50mm 10mm
200mm(8inch) 12.7mm/25.4mm 25mm 5mm
200mm(8inch) 12.7mm/25.4mm 38mm 10mm
200mm(8inch) 12.7mm/25.4mm 50mm 10mm
We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com

Grinding wheel model

Package
