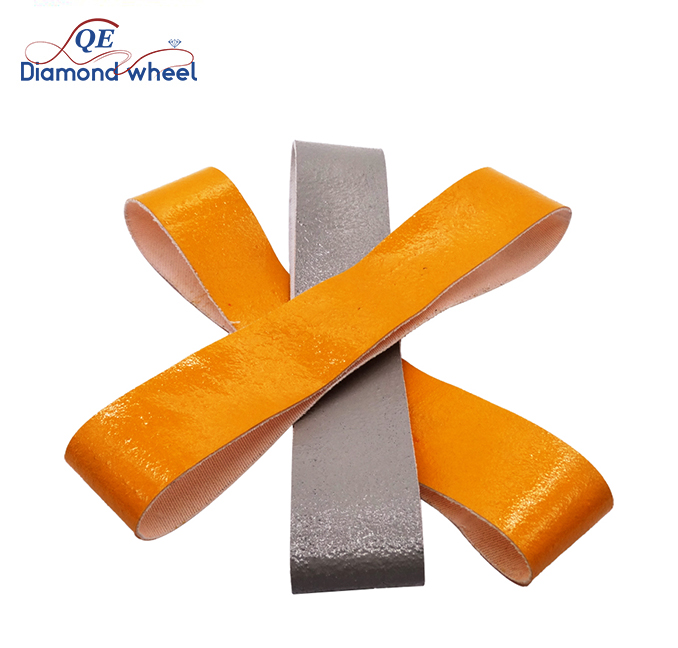

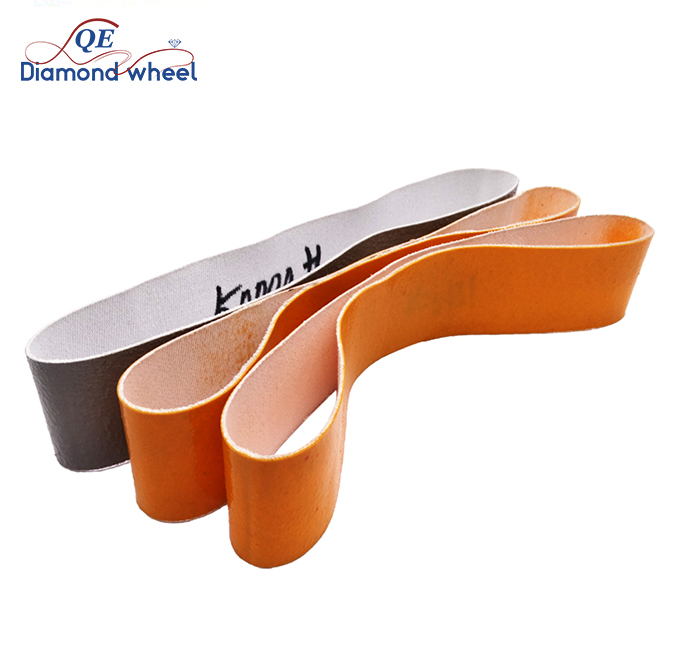

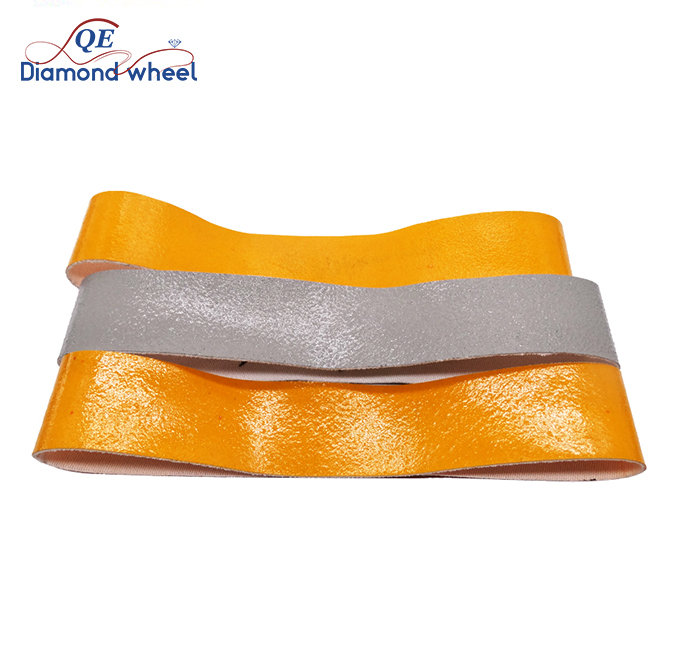

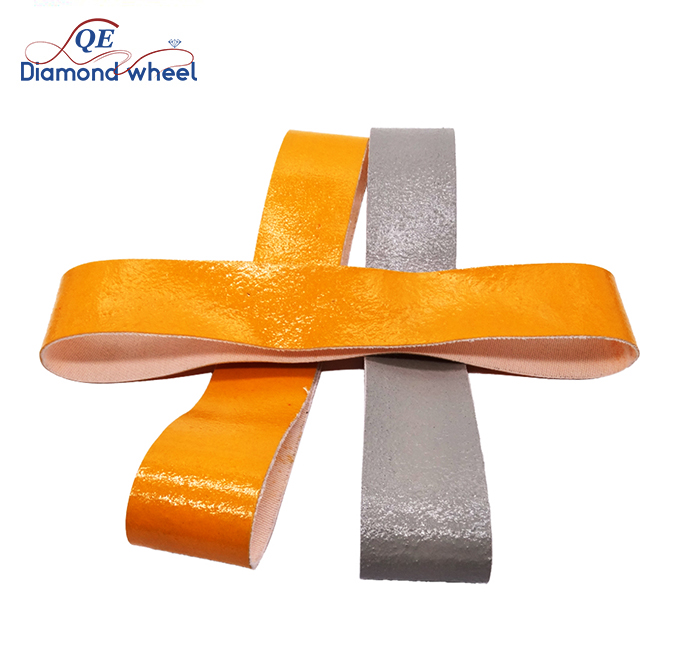

Resin Diamond Abrasive Belt

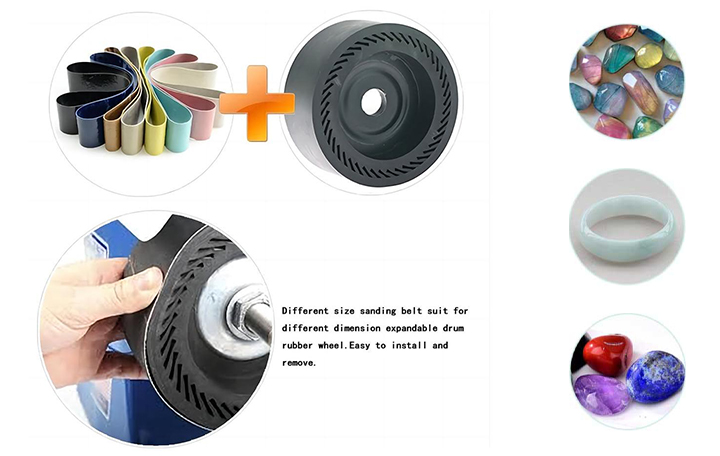

The resin diamond abrasive belt is used together with the resin expansion grinding wheel. It is cheap and has good grinding effect;

product name:resin diamond abrasive belt;

material:synthetic diamond powder;

size:150mm(6inch)/200mm(8inch);

usage:Special-shaped processing of hard and brittle materials such as OPAL,gemstones, crystals, glass, artificial crystals, and ceramics;

application:gemstone polishing machine,cabbing machine,grinding machine;

WhatsApp Send Email

Introduction Features Size Model Package Message Products

Product Introduction

resin diamond abrasive belt Can Be Used For Trimming, Smoothing, Profile Grinding And Pre-Polishing Of OPAL,Stone, Glass, Composite Materials And Even Some Metals. These Resin Diamond Abrasive Belt Are Available In 6" And 8" Diameters Rubber Wheel And In A Variety Of Different Grit Sizes;

Related Product:Resin Soft Diamond Polishing Wheel.

Related Product:Electroplated Diamond Cabbing Wheel.

Related Product:Sintered Diamond Cabbing Wheel.

Product Features

Resin Diamond Abrasive Belt Advantage

The resin diamond abrasive belt is made of artificial resin diamond powder and cloth matrix. It is relatively soft as a whole and needs to be used with a resin expansion wheel. After the abrasive belt is used up, you only need to remove the original abrasive belt and install a new one on the resin expansion wheel for reuse. It saves cost and replacement time as a whole.

Product size

Product Name	Diameter	Belt length	Thickness	Grit
6 inch Resin Abrasive Sanding Belt	150mm(6inch)	481mm	38mm	60 Mesh
	150mm(6inch)	481mm	38mm	140 Mesh
	150mm(6inch)	481mm	38mm	280 Mesh
	150mm(6inch)	481mm	38mm	600 Mesh
	150mm(6inch)	481mm	38mm	1200 Mesh
	150mm(6inch)	481mm	38mm	3000 Mesh
	150mm(6inch)	481mm	38mm	8000 Mesh
	150mm(6inch)	481mm	38mm	14000 Mesh
	150mm(6inch)	481mm	38mm	50000 Mesh
8 inch Resin Abrasive Sanding Belt	200mm(8inch)	640mm	50mm	60 Mesh
	200mm(8inch)	640mm	50mm	140 Mesh
	200mm(8inch)	640mm	50mm	280 Mesh
	200mm(8inch)	640mm	50mm	600 Mesh
	200mm(8inch)	640mm	50mm	1200 Mesh
	200mm(8inch)	640mm	50mm	3000 Mesh
	200mm(8inch)	640mm	50mm	8000 Mesh
	200mm(8inch)	640mm	50mm	14000 Mesh
	200mm(8inch)	640mm	50mm	50000 Mesh
We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com

Grinding wheel model

Package
