Key Advantage: Slot grinding wheels maintain dimensional accuracy throughout their life, ensuring consistent slot dimensions across large production runs.
Slot grinding wheels are used across various industries for creating precision grooves, slots, and keyways. The application determines the optimal wheel specification including abrasive type, bond system, and wheel geometry.
| Parameter | Slot Grinding Wheels | Conventional Grinding Wheels | Advantage |
|---|---|---|---|
| Wheel Thickness | 0.5 - 6.0 mm | 10 - 50 mm | Precision slot cutting |
| Dimensional Stability | Excellent (≤0.01mm) | Good (≤0.05mm) | Consistent slot dimensions |
| Reinforcement | Fiberglass/metal core | Standard reinforcement | Reduced deflection |
| Surface Finish (Ra) | 0.2 - 0.8μm | 0.4 - 1.6μm | Superior finish |
| Coolant Flow Design | Optimized for deep slots | Standard design | Better heat dissipation |
| Application Specific | Specialized for slotting | General purpose | Higher performance |

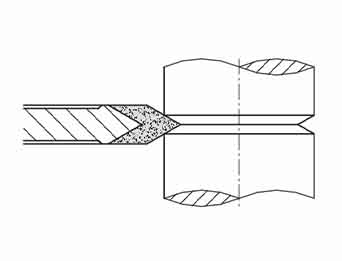

Slot grinding wheels are engineered specifically for groove and slot cutting applications. Their thin profile minimizes material removal while maintaining cutting efficiency. The specialized bond systems and reinforcement methods provide exceptional dimensional stability, allowing for the creation of precise slots with tight tolerances even in hard-to-machine materials like hardened steels, carbides, and superalloys.
Slotting of transmission components, crankshaft oil grooves, piston ring grooves, and turbocharger wheel slots requiring precision and high production rates.
Precision slotting of turbine blades, engine components, and aerospace alloys where tight tolerances and superior surface finishes are critical.
Creation of cooling channels in injection molds, slots in stamping dies, and complex groove patterns in tool steel components.
Manufacturing of gears, bearings, pumps, and hydraulic components requiring precise keyways, splines, and groove patterns.
Maintains slot width tolerances within ±0.01mm throughout the wheel life, ensuring consistent part dimensions across production runs.
Reinforced with fiberglass or metal cores to minimize deflection during cutting, resulting in straight, parallel slot walls.
Optimized coolant flow design prevents thermal damage to both workpiece and wheel, extending tool life and improving surface quality.
Advanced abrasive formulations and bond systems enable efficient material removal while maintaining cutting edge sharpness.
Hard Materials, High Precision
Non-Ferrous Materials, Carbides
General Purpose, Cost-Effective
Choosing the right slot grinding wheel depends on material hardness, slot dimensions, production volume, and surface finish requirements. For hardened steels above HRC 45, CBN wheels offer the best economics despite higher initial cost. For carbides and ceramics, diamond wheels are essential. For general-purpose applications on softer materials, alumina wheels provide excellent value. Always consider wheel thickness relative to slot width - typically select a wheel 0.1-0.3mm thinner than the desired slot.
| Parameter | Standard Slot Wheels | Precision Slot Wheels | Ultra-Thin Slot Wheels |
|---|---|---|---|
| Slot Width Range | 1.0 - 6.0 mm | 0.8 - 4.0 mm | 0.5 - 2.0 mm |
| Width Tolerance | ±0.02 mm | ±0.01 mm | ±0.005 mm |
| Max. Slot Depth | 30 mm | 20 mm | 15 mm |
| Surface Roughness (Ra) | 0.8μm | 0.4μm | 0.2μm |
| Parallelism | 0.02 mm/100mm | 0.01 mm/100mm | 0.005 mm/100mm |
| Max. Operating Speed | 45 m/s | 60 m/s | 80 m/s |
| Typical Materials | Carbon/alloy steels | Tool steels, hardened steels | Aerospace alloys, carbides |
High Precision, Complex Geometries
Primary Applications: Complex slot patterns, helical grooves, and precision keyways requiring CNC interpolation.
Versatile, Multi-purpose Grinding
Primary Applications: Straight slots, keyways, and simple groove patterns on flat surfaces.
Tool Manufacturing, Complex Profiles
Primary Applications: Slot grinding on cutting tools, milling cutters, and specialized tooling.
Slot grinding requires specialized machines with high rigidity and precision. European manufacturers like KAPP and LIEBHERR lead in high-precision CNC slot grinding. Asian brands such as OKAMOTO and CHEVALIER offer excellent value for general slotting applications. Specialized tool grinding manufacturers like WALTER and ANCA excel in complex tool slot grinding. Machine selection should consider rigidity, spindle accuracy, control capabilities, and compatibility with your specific slot grinding wheels.
Choosing appropriate wheel type, thickness, and abrasive based on material and slot requirements
Mounting and truing the slot grinding wheel, setting correct RPM and feed rates
Precise clamping and alignment of workpiece to ensure accurate slot position
Controlled material removal to create precise slot with proper depth and width
Measuring slot dimensions, parallelism, and surface finish to ensure specifications are met
When selecting slot grinding wheels, consider the following factors:
We recommend consulting with our technical team for application-specific recommendations. We can provide wheel samples for testing and optimize the grinding parameters for your specific application to ensure optimal performance and cost efficiency.
Our slot grinding wheels have helped manufacturers in over 35 countries achieve superior slot quality, extended wheel life, and reduced production costs. Contact us today for a customized recommendation or to request samples for testing with your specific application.
Request Technical ConsultationGlobal Export | ISO 9001 Certified | Quality Guarantee
Typical Specifications: 1A1-D125-T10-X10-H20/31.75 D64;
Applicable Scenarios: Carbide Tool Grooving: Such As Tungsten Steel Drills, Spiral Grooves Or Straight Grooves Of Milling Cutters (Matching Five-Axis Tool Grinders: WALTER, ANCA, Etc.).

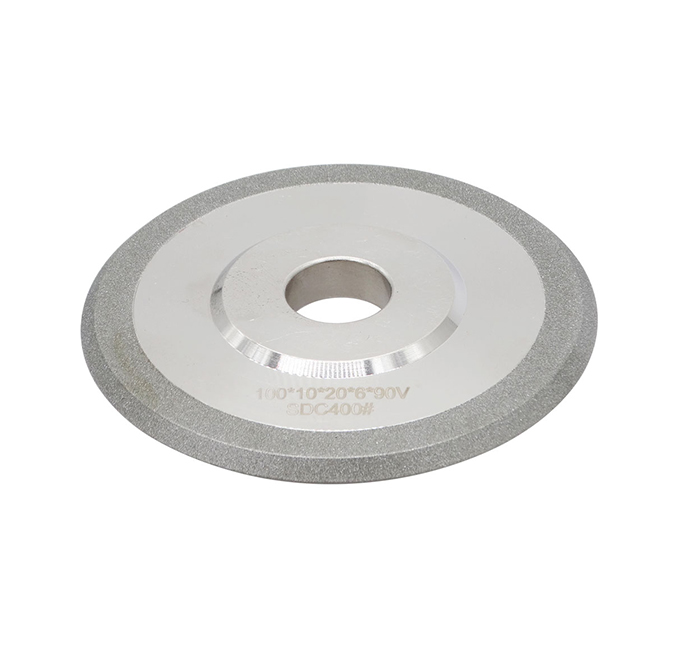

Typical Specifications: 1EE1-150D*10T*32H*45V*15X D180P;
Applicable Scenarios: V-Groove Processing Of Hard And Brittle Materials: Ceramic Sealing Rings, Glass 45° Chamfering, And Carbide Guide Rail Grinding.
Typical Specifications: 14A1-300D*25T*127H*10U*3X SDC240B;
Applicable Scenarios: Tungsten Carbide Rotor Groove Grinding: Deep Groove Processing Of Compressor Vane Pumps And Hydraulic Pump Rotors;
Typical Specifications: 300×15×127×6×1.2~7;
Applicable Scenarios: Rotor Slots Of Rotary Vane Compressors: Material 20Cr/40CrMoTi, Equipped With Qinchuan And Suotu CNC Grinding Machines;
| type | Model Examples | Applicable materials | Advantages |
| Diamond grinding wheel | 1A1-D125 D64 Metal Bond | Carbide, ceramic, glass | High cutting force and excellent corner shape retention |
| CBN grinding wheel | 14A1-CBN240B Resin Bond | Hardened steel, high-speed steel, high-manganese steel | High temperature resistance and long service life |
| Electroplated diamond grinding wheel | 1EE1-150D D180P | Precision V-groove machining | No trimming required, suitable for small batch customization |
| Vitrified bond CBN grinding wheel | 300×15×127 Ceramic CBN | High-hardness alloy steel rotor slots | High wear resistance and long trimming intervals |
