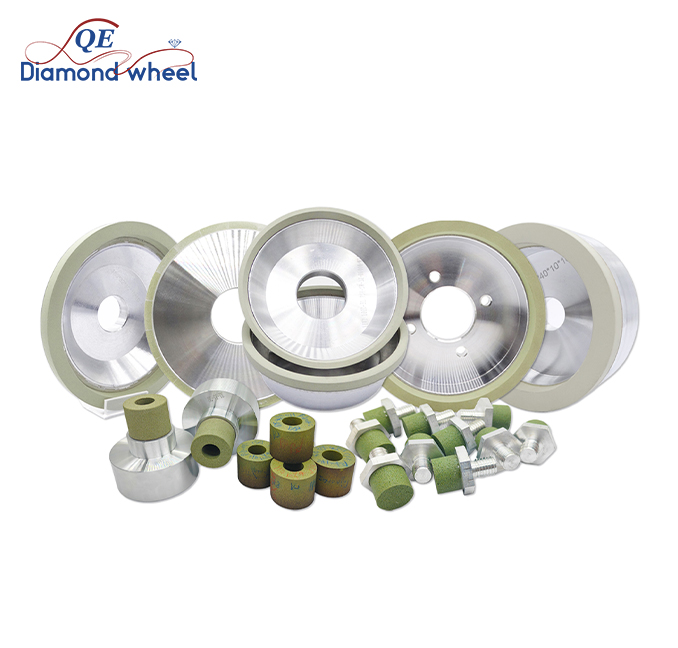

Vitrified diamond grinding wheels for PCD & PCBN tools;
Vitrified bond diamond grinding wheel is a super-hard abrasive tool made of diamond as abrasive and ceramic material as a binder, specially used for precision machining of high-hardness and brittle materials. Its comprehensive performance is better than that of resin and metal bond grinding wheels, especially in high-efficiency and high-precision scenarios;

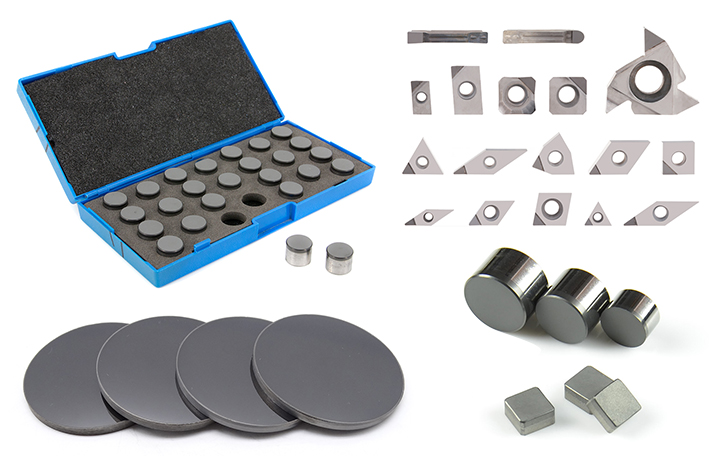

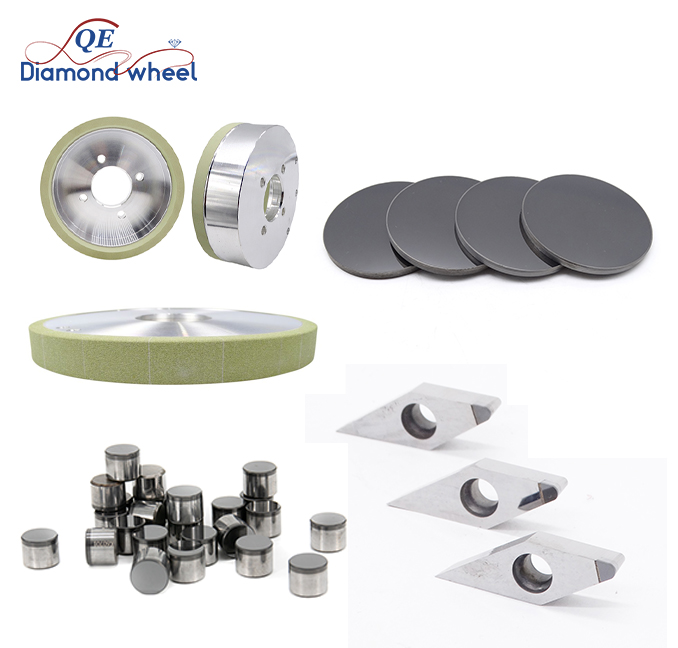

Vitrified diamond grinding wheels can be used for grinding various PCD/PCBN tools, such as PCD tools, PCD drill bits, PCD saw blades and other tools. The main models are as follows:
The Pore Structure Allows For Chip Dissipation And Heat Removal, Combined With The High Thermal Conductivity Of Diamond (Thermal Conductivity 900-2000 W/MK), Reduces Workpiece Burns.
The Ceramic Binder Has A Low Thermal Expansion Coefficient, Stable Grinding Force, And Workpiece Shape Error ≤ 2μM.
The binder has high chemical stability and is compatible with all types of grinding fluids.
High Temperature Resistance (＞1000℃) And Corrosion Resistance, Support Dry Grinding/Wet Grinding.
Vitrified bond wheels offer tool life greater than 150 times that of a resin bond wheel and can be easily trued and dressed on the machine.
| Model | D (mm) | T (mm) | H (mm) | W (mm) | X (mm) |
| grinding wheel for pcd/pcbn tools grinding | 150 | 40 | 32 40 | 5 10 15 20 | 10 |
| 125 | 40 | 32 40 | 5 10 15 20 | 10 | |
| 100 | 40 | 20 32 40 | 3 5 10 15 20 | 10 | |

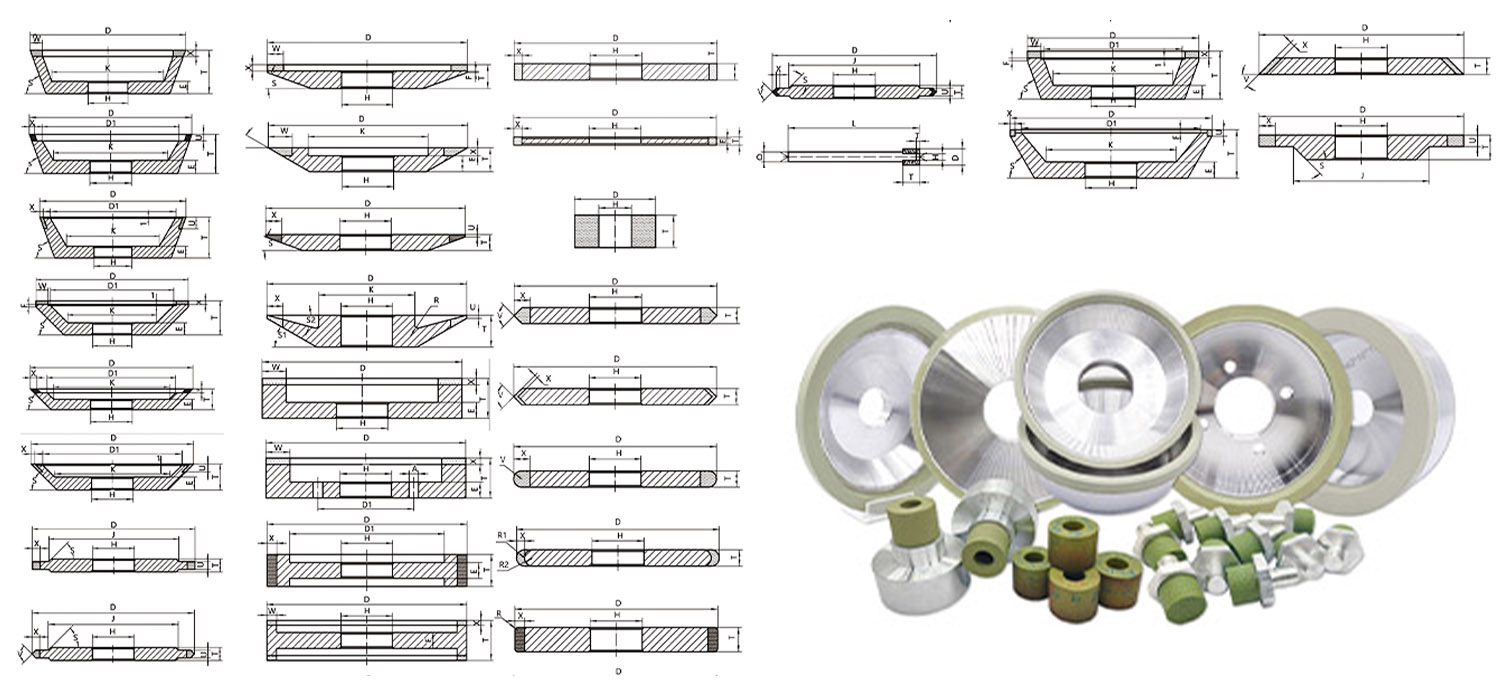

| Shaped: 1A1/4A2/6A2/11A2/11V2/12A2/14F1 And other models; Customized:admin@qediamonds.com |
|||||

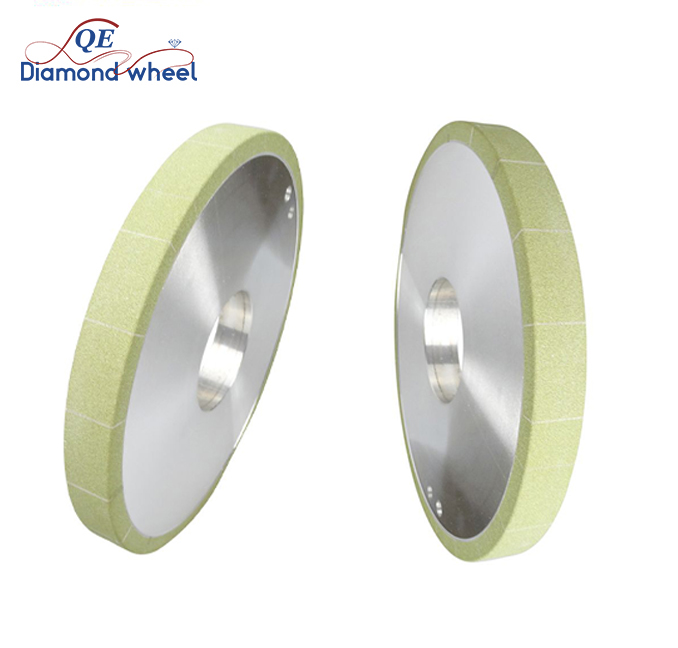

1A1 Shaped Vitrified Bond Diamond Grinding Wheel

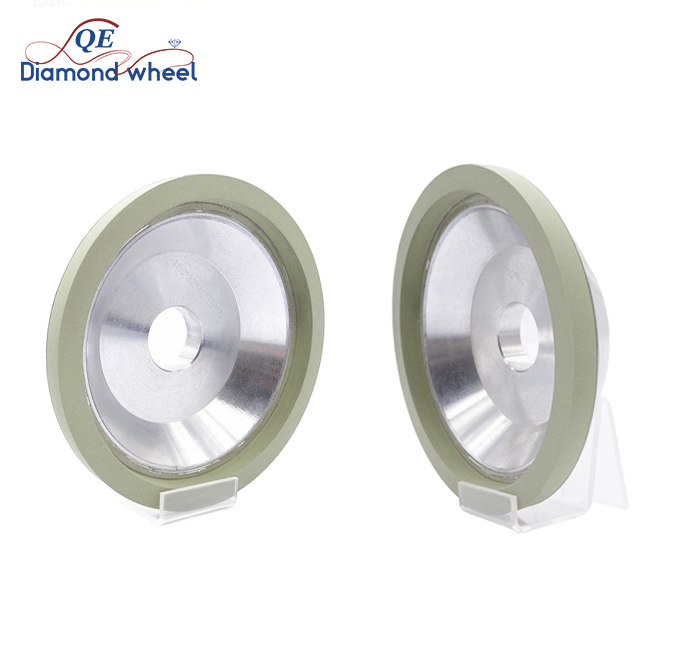

6A2 Shaped Vitrified Bond Diamond Grinding Wheel
11A2 Shaped Vitrified Bond Diamond Grinding Wheel
14F1 Shaped Vitrified Bond Diamond Grinding Wheel
