Ceramic Grinding Industry

        Modern Ceramics Are Also Known As New Ceramics, Fine Ceramics, Or Special Ceramics. Commonly Used Non Silicate Chemical Raw Materials Or Artificially Synthesized Raw Materials, Such As Oxides (Alumina, Zirconia, Titanium Oxide, Etc.) And Non Oxides (Silicon Nitride, Boron Carbide, Etc.) For Manufacturing.Ceramics Have Many Advantages Such As Excellent Insulation, Corrosion Resistance, High Temperature Resistance, High Hardness, Low Density, And Radiation Resistance. Scientists And Engineers Have Developed A Wide Variety Of Special Ceramics Based On The Ultimate Requirements Of Material Properties For Different Application Scenarios.

      The Physical And Chemical Properties (Especially Hardness And Toughness) Of Different Special Ceramics Vary Greatly, So The Selection Strategy Of Grinding Wheels Is Completely Different When Grinding Them. The Core Selection Logic Is To Match The “Holding Force” And “Self Sharpening” Of The Grinding Wheel Binder Based On The Two Major Characteristics Of “Hardness Brittleness” And “Toughness Viscosity” Of Ceramic Materials.

      01 High Hardness, High Brittleness Ceramics

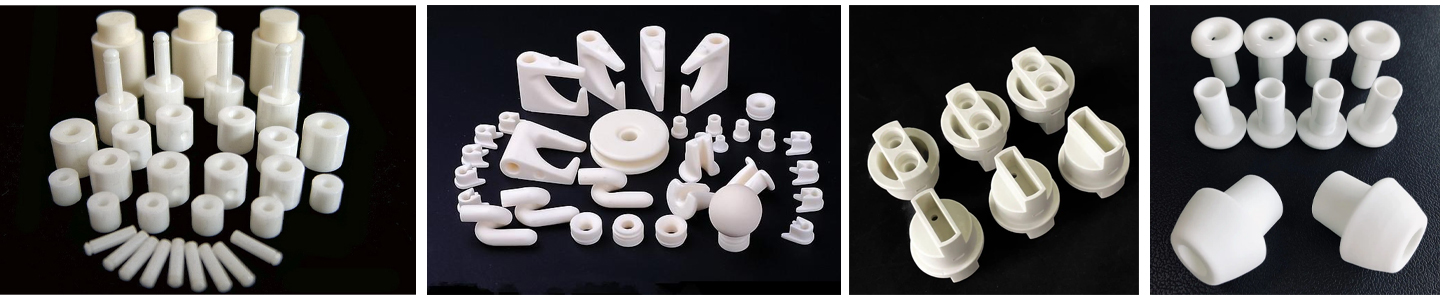

      (1) Representative materials: Aluminum Oxide (Al ₂ O3) Ceramics, Silicon Carbide (SiC) ceramics, Aluminum Nitride (AlN) Ceramics;

      (2) Material Characteristics: Extremely High Hardness (Mohs Hardness ≥ 9), Typical Brittle Fracture Mode, And Abrasive Debris In Powder Form.

      (3) Main Challenges: High Grinding Resistance, Fast Wear Of Grinding Wheel, And Easy To Cause Micro Cracks On The Surface Of The Workpiece.

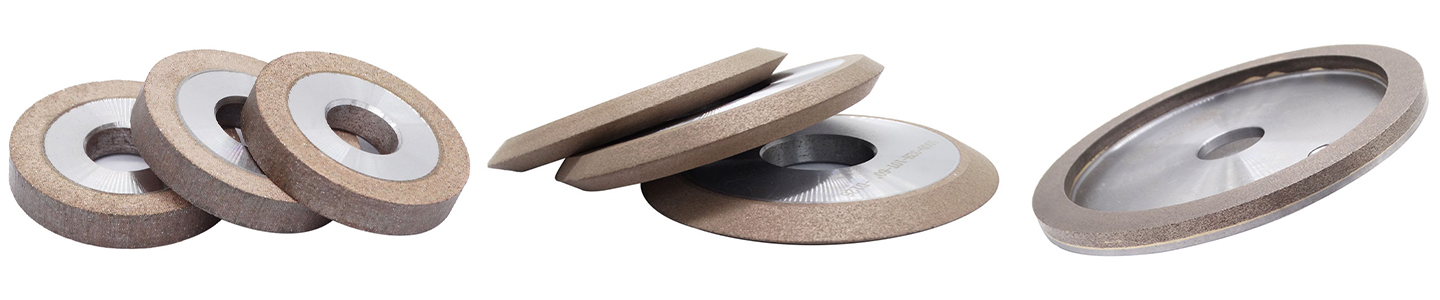

      (4) Preferred Grinding Wheel: Metal Bond Diamond Grinding Wheel For Ceramic;

          Metal Binders Have The Strongest Grip On Diamond Abrasive Particles, Are Extremely Wear-Resistant, Have A Long Lifespan, And Can Withstand Enormous Grinding Forces, Making Them Suitable For Efficient Material Removal. Choose A Lower Concentration (Such As 75% Concentration) For Rough Grinding, And A Higher Concentration For Fine Grinding.

      (5) Precision Machining Selection: Resin Bond Diamond Grinding Wheel Or Diamond Grinding Paste;

          Used To Achieve Higher Surface Smoothness, Resin Binders Have Better Self Sharpening Properties And Softer Cutting.

      02 High Toughness, Easy To Adhere Ceramics (“Gummy”)

      (1) Representative Materials: Zirconia (ZrO ₂) Ceramics, Partially Silicon Nitride (Si ∝ N ₄) Ceramics;

      (2) Material Characteristics: High Fracture Toughness, With A Certain Degree Of Plasticity. During Grinding, The Material Is Not Easily Shattered But Undergoes Plastic Flow, And The Grinding Debris Is Prone To “Stick” To The Surface Of The Grinding Wheel.

      (3) Main challenge:Grinding Wheel Blockage Is The Primary Issue. The Adhesion Of Grinding Debris To The Pores Of The Grinding Wheel Can Cause The Wheel To Become Dull,Increase Grinding Force, Raise Temperature, And Ultimately Burn The Workpiece.

      (4) Preferred Grinding Wheel: Ceramic/Vitrified Bond Diamond Grinding Wheel For Ceramic

      This Is The Best Choice For Grinding Such Materials. Vitrified Bond Diamond Grinding Wheel Itself Contains Uniform Pores, Providing A Chip Holding Space For Grinding Debris, Effectively Avoiding Clogging, While Maintaining Good Self Sharpening And High Grinding Efficiency. Its Hardness Range Is Wide, Applicable From Rough Grinding To Fine Grinding.

      (5) Alternative Options: Resin Bonded Grinding Wheels With Large Pores Or Openings

      By Designing Pores To Alleviate Blockage Issues, Their Wear Resistance And Efficiency Are Usually Inferior To Ceramic Binders.

      03 Balanced Properties Ceramic

      (1) Representative Materials: Most Silicon Nitride (Si ∝ N ₄) Ceramics

      (2) Material Characteristics: It Combines High Hardness And Excellent Toughness, Making It One Of The Most Outstanding Ceramics In Terms Of Comprehensive Performance.

      (3) Main Challenge: Balancing Wear Resistance And Preventing Blockages.

      (4) Wheel selection:

      Rough Grinding: Metal Bonding Diamond Grinding Wheel Or Better Ceramic Bonding Diamond Grinding Wheel Can Be Selected For Ceramic.

      Fine Grinding: Ceramic Bonding Diamond Grinding Wheel Or Resin Bonding Diamond Grinding Wheel Are Better Choices For Obtaining Better Surface Quality.

      Conclusion: For Silicon Nitride, Ceramic Bond Grinding Wheels Are Usually The Most Efficient And Economical Choice To Cover The Entire Process From Rough Grinding To Fine Grinding.
