Centerless Grinding Is The Ultimate Solution For High-Volume Precision Machining Of Cylindrical Parts, Making It Irreplaceable In The Automotive, Bearing, And Other Fields. Its Core Value Lies In Its "Clamp-Free" Approach, Which Overcomes The Deformation Bottleneck Of Traditional Machining And Achieves A Leap In Efficiency Through "Continuous Grinding." Future Breakthroughs Will Continue To Advance In Intelligent Closed-Loop Control And Micro-Nano Machining.;
Key Advantage: Centerless grinding eliminates the need for workpiece centering, significantly reducing setup time and enabling continuous production.
Centerless grinding encompasses several specialized techniques, each optimized for specific part geometries, production volumes, and precision requirements. The two primary methods are through-feed and in-feed grinding, with variations for specialized applications.
| Parameter | Centerless Grinding | Conventional Grinding | Advantage |
|---|---|---|---|
| Setup Time | 2-5 minutes | 15-30 minutes | Up to 85% reduction |
| Production Rate | 200-1000 pcs/hour | 40-200 pcs/hour | 3-5 times faster |
| Roundness Accuracy | ≤0.5μm | ≤1.0μm | 50% improvement |
| Surface Finish (Ra) | 0.1-0.4μm | 0.2-0.8μm | Superior finish |
| Operator Skill Required | Medium | High | Easier operation |
| Flexibility | High (quick changeover) | Medium | Better for mixed batches |
Centerless grinding offers significant economic benefits for high-volume production. The elimination of centering operations reduces labor costs, while continuous operation capabilities maximize machine utilization. Quick changeover between different workpiece diameters (often under 5 minutes) makes centerless grinding ideal for JIT (Just-In-Time) manufacturing environments.
High-volume production of transmission shafts, valve stems, piston pins, camshafts, and other cylindrical automotive parts requiring precise tolerances and superior surface finish.
Precision grinding of bearing races, rollers, and balls where exceptional roundness and surface finish are critical for performance and longevity.
Manufacturing of hydraulic rods, pneumatic cylinders, valve spools, and other components requiring tight diameter control and smooth surfaces.
Production of drill blanks, reamers, taps, and other cutting tool blanks requiring precise diameters and concentricity.
Continuous operation and elimination of centering/chucking enable production rates 3-5 times higher than conventional grinding methods.
Unique workpiece support system eliminates chucking distortions, achieving roundness accuracies ≤0.5μm for critical applications.
Quick changeover between different diameters (typically 2-5 minutes) maximizes machine utilization and supports mixed-batch production.
Ideal for integration with automated loading systems, robotics, and in-line measurement for lights-out manufacturing operations.

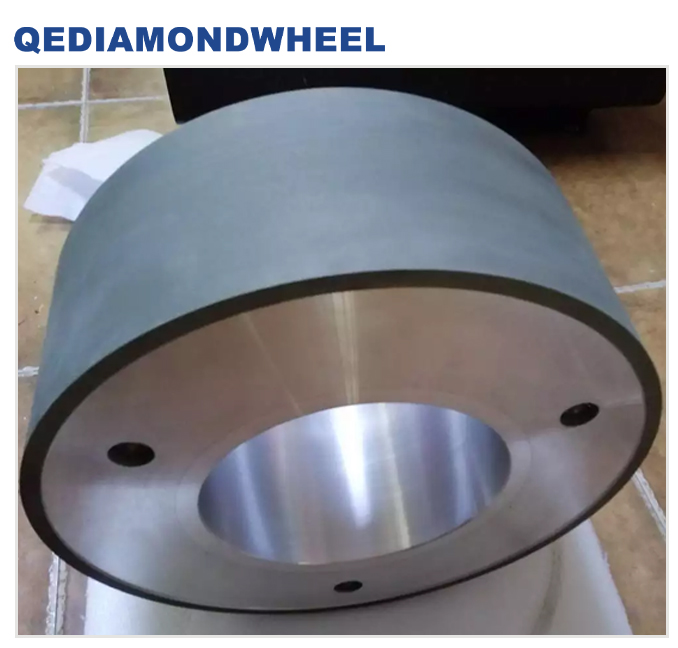

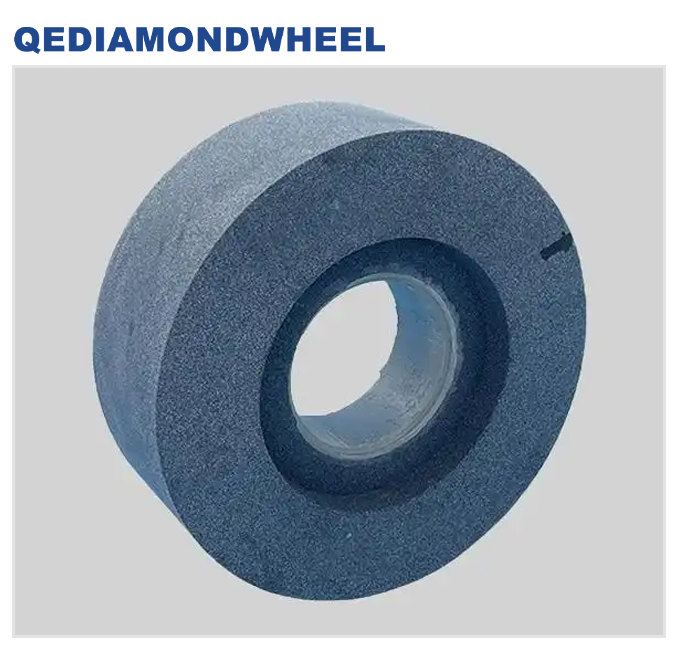

Choosing the right grinding wheel for centerless grinding depends on material removal rate, surface finish requirements, workpiece material, and production volume. For high-volume production of hardened steels, CBN wheels offer the best economics despite higher initial cost. For general-purpose applications, alumina wheels provide excellent value. Diamond wheels are specialized for non-ferrous materials and ceramics.

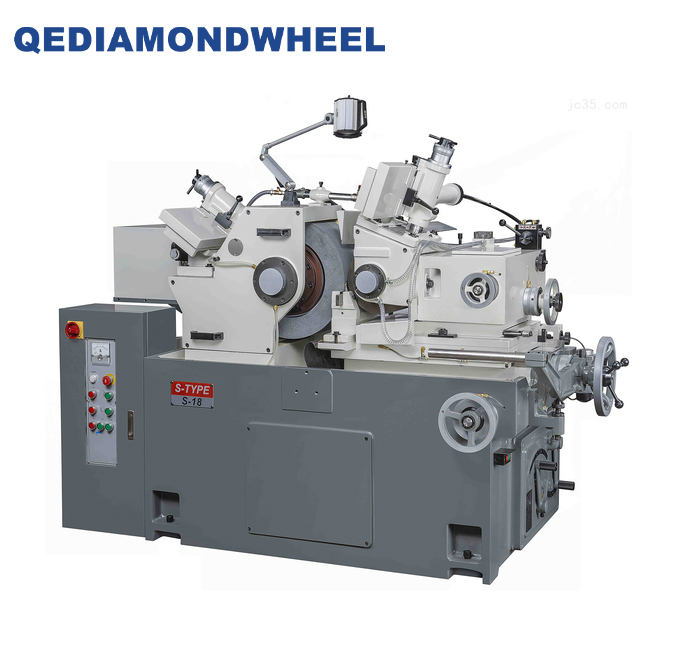

| Parameter | Standard Model | High-Precision Model | High-Production Model |
|---|---|---|---|
| Workpiece Diameter Range | Φ1-Φ100mm | Φ0.5-Φ50mm | Φ3-Φ150mm |
| Max. Grinding Length | 250mm | 200mm | 400mm |
| Roundness Accuracy | ≤1.0μm | ≤0.5μm | ≤2.0μm |
| Surface Roughness (Ra) | 0.4μm | 0.2μm | 0.8μm |
| Grinding Wheel Power | 15kW | 11kW | 22kW |
| Production Capacity | 200-500 pcs/hr | 100-300 pcs/hr | 500-1000 pcs/hr |
| Control System | SIEMENS 828D | FANUC 31i-B | Specialized PLC |
High Volume, Continuous Production
Primary Applications: Mass production of straight cylindrical components like shafts, pins, and rods.
Complex Profiles, Multiple Diameters
Primary Applications: Components with shoulders, tapers, or multiple diameters requiring precise form grinding.
High Precision, Flexible Automation
Primary Applications: Precision components requiring tight tolerances and frequent changeovers.
The centerless grinding machine market is dominated by specialized manufacturers with decades of expertise. European brands like KÖNIG and ESTARTA lead in high-precision applications. Asian manufacturers such as JAGURA and TOYOTA excel in high-volume production systems. Specialized builders like AGATHON focus on specific industries like medical and aerospace. When selecting equipment, consider machine rigidity, spindle technology, control capabilities, and after-sales support network.

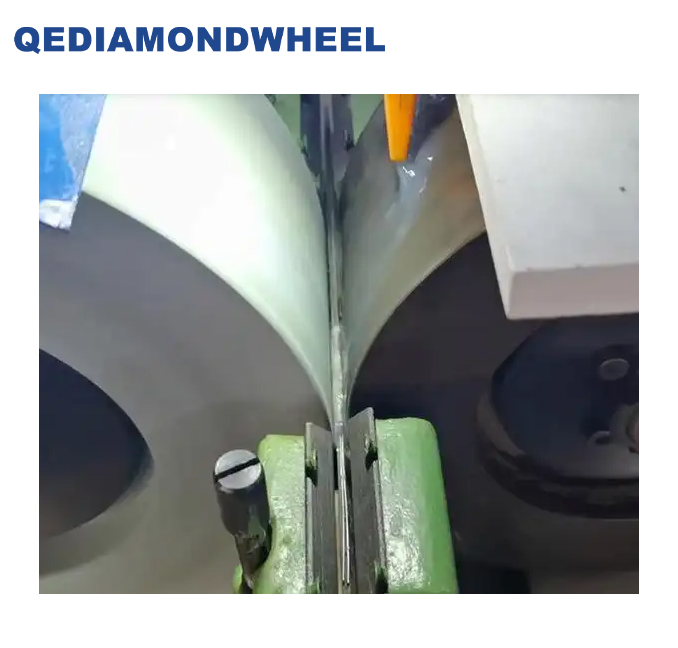

Automatic or manual loading onto work blade between grinding and regulating wheels
Adjusting grinding wheel, regulating wheel, and work blade for specific workpiece diameter
Workpiece rotates between wheels while material is removed to achieve desired diameter
Continuous measurement and automatic adjustment to maintain tight tolerances
Automatic unloading, inspection, and sorting of finished components
When selecting centerless grinding equipment, consider the following factors:
We recommend scheduling a production trial with our technical team to evaluate your specific components and determine the optimal machine configuration, wheel selection, and process parameters for your application.
Our centerless grinding solutions have helped manufacturers in over 40 countries achieve unprecedented productivity gains and quality improvements. Contact us today for a customized quotation or to schedule a demonstration with your actual workpieces.
