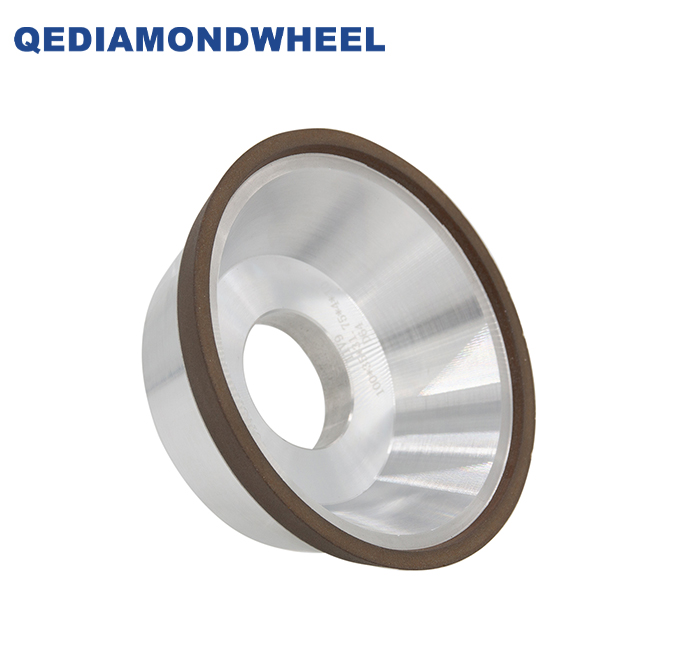

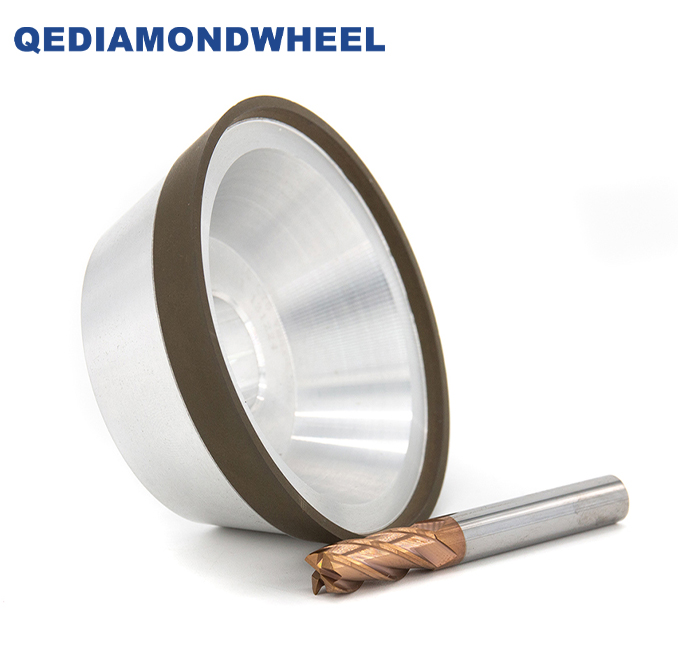

11V9 Shaped Grinding Wheel

Product Introduction

      The 11V9 Grinding Wheel Is A Deep Dish (Bowl-Shaped) Grinding Wheel With A Common Outer Diameter Of 100Mm And An Inner Hole Of 31.75Mm. The Busbar Design Contains Inflection Point Mutations, Which Can Simultaneously Handle The Root Cleaning Requirements Of The Tool'S Peripheral Tooth Back Angle And End Tooth Back Angle To Achieve Complex Contour Processing;

      The Abrasive Choice Is Diamond Abrasive Or Cubic Boron Nitride Abrasive, And The Binder Is Generally A Resin Binder (Common) Or A Metal Binder. The Former Has Good Elasticity And Is Not Easy To Burn The Workpiece, And The Latter Is Suitable For Deep Cutting And Slow Feeding;

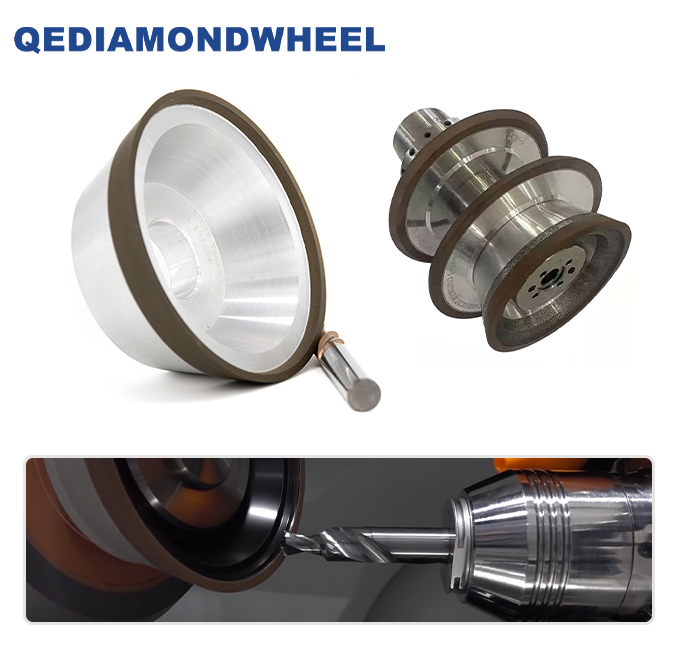

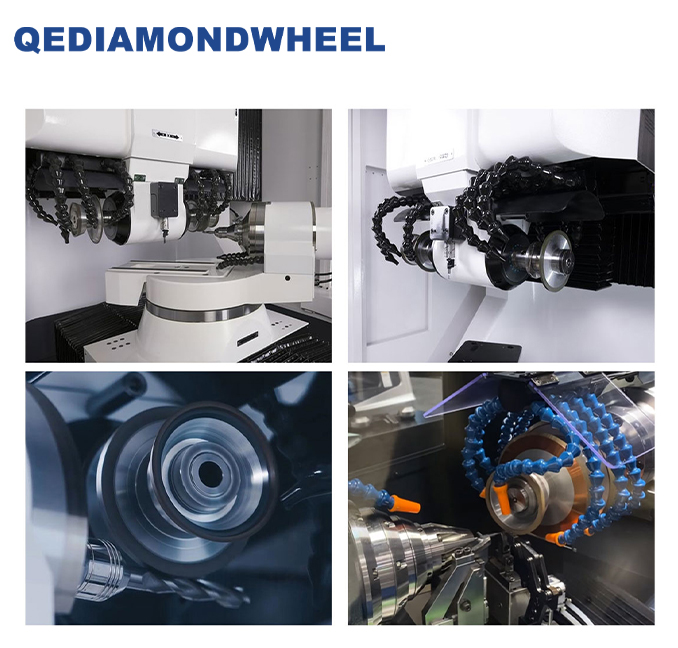

      It Is Equipped With Five-Axis Grinders From Brands Such As Walter And ANCA, And Is Used To Process Complex Cutting Tool Geometries Such As Milling Cutter Grooves And Drill Helical Surfaces.

11V9 Shaped Resin bond diamond grinding wheels

11V9 Shaped Resin bond Cbn grinding wheels

11V9 Shaped Metal (bronze) bond Diamond grinding wheels

11V9 Shaped Metal (bronze) bond Cbn grinding wheels

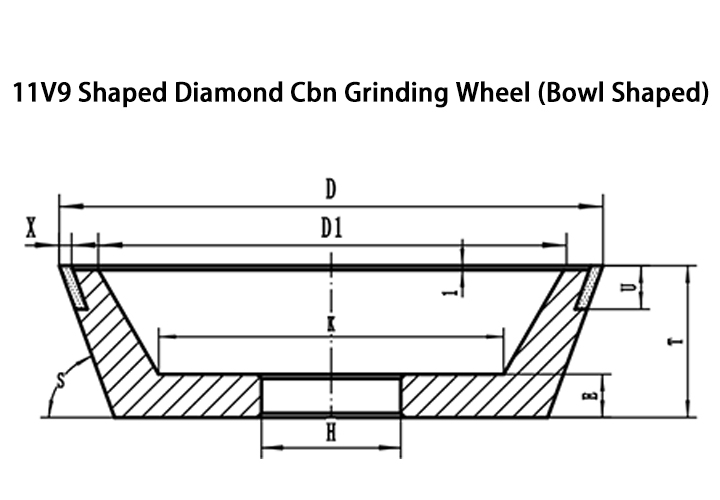

Product size

Grinding wheel model

Package
